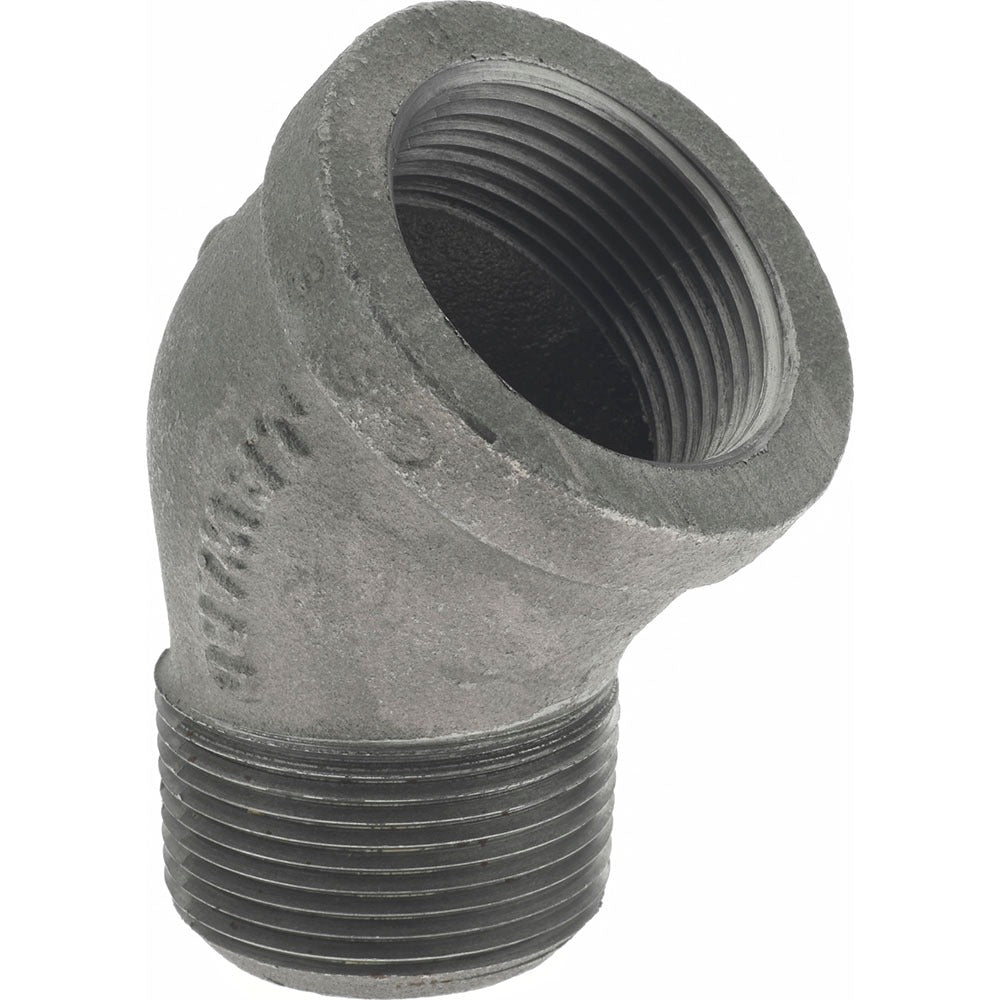

Value Collection B121 32 Black 45 Street Elbow 1-1/4 in

Product Description

The VALUE COLLECTION B121 32 is a 45-degree street elbow designed for threaded pipe assemblies in black malleable iron. It provides a 45-degree change of direction within a run of threaded pipe, with one male end and one female end so it can thread directly into a fitting or port without a separate nipple. Rated at 300 psi, this fitting meets ANSI/ASME B1.20.1 thread standards and ASME B16.3 for malleable iron fittings. The black finish is standard for gas and general-purpose piping applications. Plumbers, pipefitters, and mechanical contractors install this fitting in new construction and retrofit work.

This street elbow is suited for residential and light commercial piping systems where a 45-degree offset is needed in a compact space. It is commonly used in natural gas, propane, steam, and water distribution lines where malleable iron fittings are specified. The street configuration eliminates the need for an additional close nipple, saving space and reducing leak points. Class 150 rating makes it appropriate for standard-pressure service in both above-ground and in-wall installations.

Key Features

• 45-degree street elbow configuration with one male and one female threaded end
• Malleable iron construction with black finish for gas and general piping service
• 300 psi pressure rating for dependable service in standard-pressure systems
• Meets ANSI/ASME B1.20.1 thread form and ASME B16.3 dimensional standards
• Class 150 fitting for residential and light commercial mechanical systems
• Compact street design eliminates the need for an intermediate nipple

Compatibility

Designed as a standard Class 150 malleable iron threaded street elbow for use in 1-1/4 inch threaded pipe systems where ASME B16.3 fittings are specified.

Installation Notes

A licensed plumber or pipefitter should install this fitting in gas or pressure piping systems per applicable codes including IFGC and IPC. Apply appropriate thread sealant or PTFE tape to all male threads before assembly. Shut off and depressurize the system completely before disassembling or modifying any existing pipe run. Do not overtighten; use a pipe wrench with a backup wrench on adjacent fittings to avoid stressing upstream connections.
