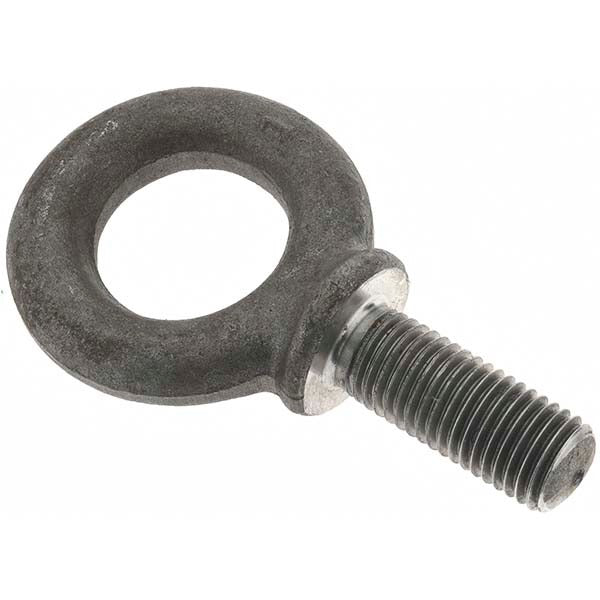

Value Collection B10784 Fixed Shoulder Eye Bolt 10000 Lb

Product Description

The VALUE COLLECTION B10784 is a fixed lifting eye bolt with a shoulder, designed for heavy-duty rigging and lifting applications in industrial and construction environments. Built from Grade 1045 steel, this eye bolt carries a rated lifting capacity of 10,000 pounds. The shank measures 2.5 inches with a fully threaded 2.5-inch thread length at a 1-8 thread size. The eye inside diameter measures 1-13/16 inches and the eye outside diameter measures 3.5 inches. It is installed by riggers, maintenance technicians, and industrial tradespeople who require a reliable fixed anchor point for overhead lifting.

This eye bolt is suited for stationary vertical lifting where the load is applied inline with the bolt axis. The shoulder design seats flush against the mounting surface, distributing load stress and preventing the bolt from pulling through the substrate. Typical install scenarios include overhead beam attachments, machinery lifting points, and structural rigging setups in manufacturing facilities, warehouses, and job sites. Each package contains 5 units.

Key Features

• 10,000 lb rated lifting capacity for heavy-duty overhead rigging
• Shoulder design seats flush against the mounting surface for proper load distribution
• Fully threaded 2.5-inch shank at 1-8 thread size for secure engagement
• Grade 1045 steel construction for high tensile strength
• Eye inside diameter of 1-13/16 inches accommodates standard shackles and hooks
• Sold in a package of 5 units

Compatibility

Designed as an OEM-style fixed shoulder eye bolt for use in standard 1-8 threaded anchor applications where a 10,000 lb rated vertical lifting point is required.

Installation Notes

Installation should be performed by qualified riggers or maintenance tradespeople familiar with applicable ASME B30 rigging standards. Thread the bolt fully into a properly sized and rated tapped hole until the shoulder seats firmly and squarely against the mounting surface before applying any load. Never apply side-loading or angular loading to a fixed eye bolt, as this significantly reduces safe working load. Inspect the eye bolt and threads for damage before each use.
