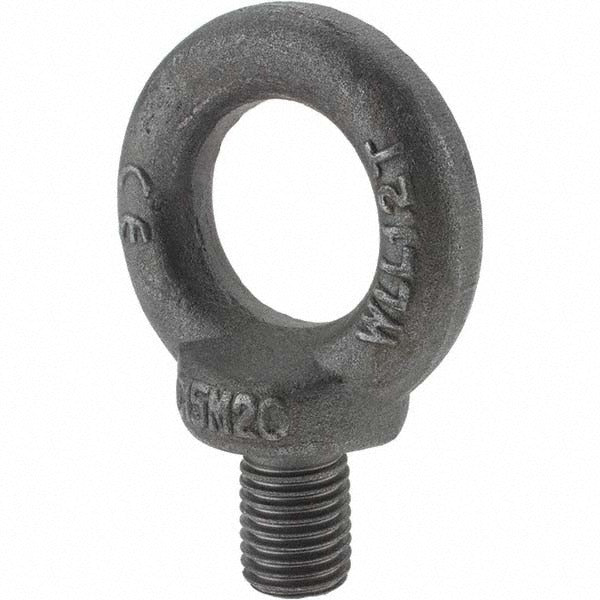

Value Collection B10783 Fixed Lifting Eye Bolt M20 X 2.50

Product Description

The VALUE COLLECTION B10783 is a fixed lifting eye bolt with shoulder, designed for vertical and angular load-lifting applications in industrial and trade environments. Manufactured from Grade 1015 steel with full threading along its shank, this eye bolt provides a secure attachment point for hoists, rigging hardware, and overhead lifting assemblies. It carries a lifting capacity of 1,200 kilograms and features an M20 x 2.50 thread size, making it part of a metric fastener system. Rigging specialists, millwrights, and maintenance mechanics install this type of hardware when a permanent or semi-permanent lifting anchor point is required on machinery, structural steel, or equipment frames.

This eye bolt is suited for industrial facilities, manufacturing plants, construction sites, and heavy equipment service environments. The shoulder design provides a load-bearing surface that distributes stress between the eye and the mounting surface, which is critical for side-load and angular lifting scenarios. The fully threaded shank allows consistent engagement across a range of material thicknesses. It arrives in a package quantity of two units per pack, making it practical for installations requiring matched anchor points.

Key Features

• Fixed eye configuration provides a rigid, non-swiveling attachment point for controlled rigging setups
• Shoulder design transfers load stress to the mating surface, supporting angled lift conditions
• Lifting capacity of 1,200 kilograms for heavy-duty overhead rigging applications
• Fully threaded shank with M20 x 2.50 metric thread for compatibility with standard metric tapped holes
• Grade 1015 steel construction provides solid mechanical strength for industrial use
• Sold in a pack of two units, suitable for balanced dual-anchor lift points

Compatibility

Designed as a metric-thread lifting anchor for use in standard M20 x 2.50 tapped holes in steel, iron, or similarly rated structural members where a fixed shoulder eye bolt is specified.

Installation Notes

Installation should be performed by qualified rigging personnel or a licensed millwright familiar with applicable lifting and rigging standards. Ensure the mounting surface is rated to handle the intended load before threading the bolt into position. Power down or de-energize any associated equipment before securing the eye bolt in overhead or machinery lifting applications. Always verify thread engagement depth and torque per the governing rigging or structural specification before placing the assembly under load.
