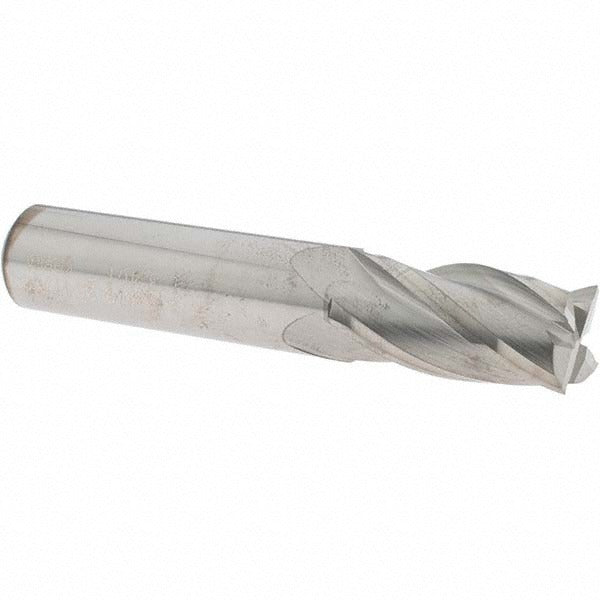

Value Collection B10319 Square End Mill 5/8 in 4 Flute Carbide

Product Description

The VALUE COLLECTION B10319 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineering plastics. With a 5/8 inch cutting diameter and a 4-flute, right-hand spiral geometry, it delivers clean, accurate cuts in a single-end configuration. The 30-degree helix angle promotes efficient chip evacuation and reduces cutting forces. Micrograin carbide construction provides the hardness and edge retention required for demanding applications in production and job-shop environments. A licensed machinist or CNC operator is the typical end user for this tool.

This end mill is suited for peripheral and slot milling in ferrous and non-ferrous materials. The bright/uncoated finish makes it appropriate for applications where coating compatibility is a concern or where re-sharpening is anticipated. It fits standard 5/8 inch tool holders and collet chucks used on vertical machining centers, knee mills, and CNC routers. The 1-1/4 inch length of cut (LOC) supports moderate-depth passes, while the 3-1/2 inch overall length keeps deflection manageable at this diameter.

Key Features

• Micrograin solid carbide construction for superior hardness and edge retention
• 4-flute, right-hand spiral design with 30-degree helix for efficient chip evacuation
• Center-cutting capability allows plunge entry into workpiece
• Bright/uncoated finish compatible with a wide range of workpiece materials
• Single-end configuration; 5/8 inch shank matches standard collet and tool-holder sizes
• No chipbreaker, coolant-through passages, or variable helix — straightforward geometry for general milling

Compatibility

Designed as a standard 5/8 inch shank end mill for use in collet chucks, end mill holders, and shrink-fit holders on vertical machining centers, knee mills, and CNC routers that accept 5/8 inch tooling.

Installation Notes

Install in a clean, properly sized collet or end mill holder; confirm runout with a dial indicator before cutting. Tighten to the tool-holder specification and ensure the shank is fully seated to the recommended gauge-line depth. Power down and lock out the spindle before changing tooling. Follow your machine manufacturer and shop safety guidelines for speeds, feeds, and chip management when machining with carbide end mills.
