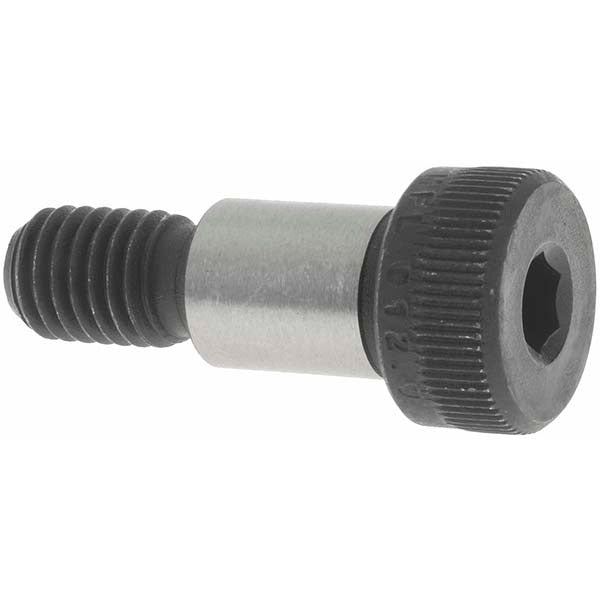

Value Collection B10117 Shoulder Screw M10x1.50 Alloy Steel

Product Description

The VALUE COLLECTION B10117 is a metric shoulder screw designed for precision fastening applications where a hardened, close-tolerance shank acts as a pivot, guide pin, or bearing surface. The 12 mm shoulder diameter and 16 mm shoulder length provide accurate locating in jigs, fixtures, and mechanical assemblies. Manufactured from 12.9 grade alloy steel with an uncoated finish, this screw delivers high tensile strength suited to demanding industrial and mechanical applications. The hex socket drive allows installation with a standard hex key in confined spaces. Thread size is M10x1.50 metric coarse.

This shoulder screw is used in machine shops, tooling fixtures, conveyor assemblies, and precision mechanical linkages where a smooth, hardened shank is required to control motion or locate components. It is appropriate for both light and heavy industrial applications requiring consistent shoulder geometry. Machinists, maintenance technicians, and mechanical assemblers typically install this fastener in metal-to-metal assemblies. Package quantity is 10 pieces per order.

Key Features

• 12 mm shoulder diameter with 16 mm shoulder length for precise locating and pivot applications
• 12.9 grade alloy steel construction for high tensile and proof load strength
• M10x1.50 metric coarse thread for secure clamping engagement
• Hex socket drive for installation with standard hex keys in tight clearances
• Uncoated finish suitable for use as-supplied or with added lubrication
• Meets ASME/ANSI B18.3.3.M, BS 4168, and ISO 7379 dimensional standards

Compatibility

Designed for use in metric fastening applications conforming to ASME/ANSI B18.3.3.M, BS 4168, and ISO 7379 standards. Suitable as a direct replacement or new-install shoulder screw in fixtures and assemblies specifying a 12 mm shoulder diameter with M10x1.50 thread.

Installation Notes

Installation is performed by mechanical assemblers or maintenance technicians using a hex key sized to the socket drive. Ensure the mating bore diameter matches the 12 mm shoulder tolerance before installation to achieve proper fit and function. De-energize or lock out any machine before servicing components that use shoulder screws as pivot or guide elements. Do not over-torque the threaded section, as clamping load should be applied to the shoulder, not the thread.
