Value Collection B10098 Flat Vent Pull Out Dowel Pin

Product Description

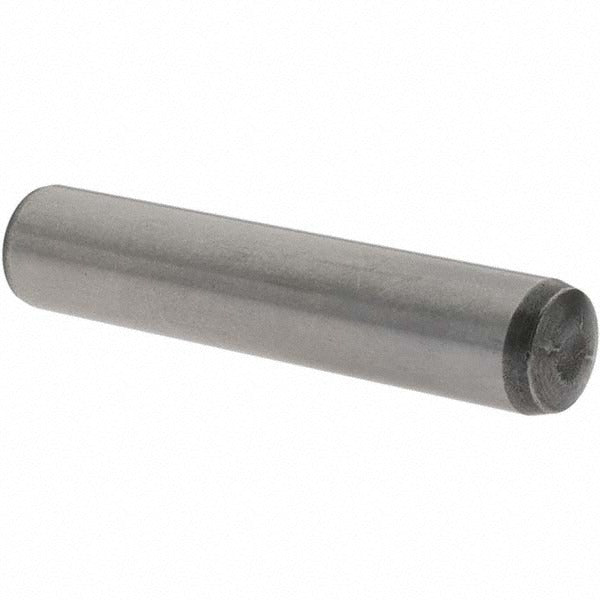

The VALUE COLLECTION B10098 is a flat vent pull out dowel pin designed for precision locating and alignment applications in industrial and mechanical assemblies. Manufactured from alloy steel to DIN 7979D standards, the pin measures 10 mm in diameter and 50 mm in overall length. It features one rounded end and one threaded end to allow extraction with a standard threaded puller tool. The Rockwell hardness range of C 57-63 provides the wear resistance and shear strength required for demanding tooling, fixture, and machine assembly work. This type of pin is typically installed and serviced by machinists, toolmakers, and maintenance technicians.

This pin is suited for use in precision jigs, fixtures, dies, and machine tool assemblies where repeatable part registration is critical. The flat vent groove along the body allows air and lubricant to escape during press-fit installation, reducing hydraulic lock and enabling controlled insertion and extraction. The DIN 7979D designation confirms dimensional compliance with the applicable metric standard, making this pin appropriate for both OEM production environments and MRO replacement applications.

Key Features

• Flat vent groove allows air and lubricant relief during press-fit installation
• One rounded end and one threaded end for puller-assisted extraction
• Alloy steel construction with Rockwell hardness C 57-63 for high wear resistance
• Conforms to DIN 7979D dimensional standard
• 10 mm diameter x 50 mm overall length for common metric tooling applications
• Sold in a package quantity of 5 pins

Compatibility

Designed as a DIN 7979D-compliant metric flat vent pull out dowel pin suitable for use in precision fixtures, jigs, dies, and machine tool assemblies requiring a 10 mm locating pin.

Installation Notes

Installation is typically performed by a machinist or maintenance technician using a press or mallet, with the flat vent groove oriented to allow trapped air and lubricant to escape during insertion. Always ensure the receiving hole is reamed to the proper H7 or specified tolerance before pressing the pin. To remove, thread a compatible puller into the threaded end and apply steady axial force. Verify all tooling or machinery is de-energized and secured before performing locating pin service.
