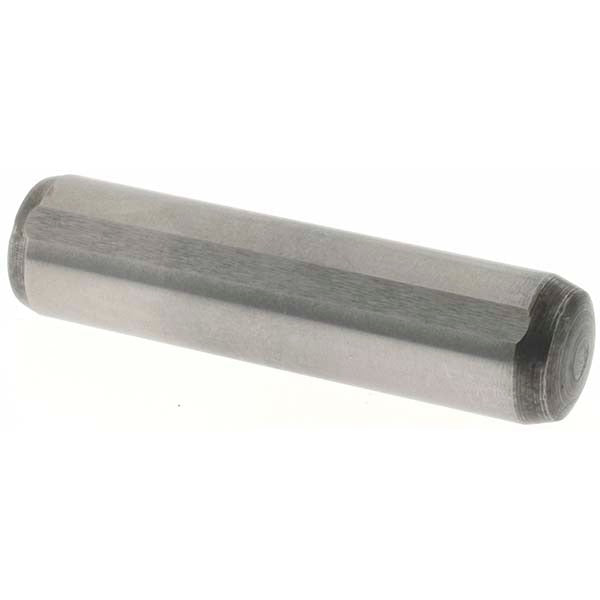

Value Collection B10097 Dowel Pin 10x40mm Alloy Steel Din 7979D

Product Description

The VALUE COLLECTION B10097 is a flat vent pull out dowel pin designed for precision location and alignment applications in industrial and mechanical assemblies. Manufactured from alloy steel and hardened to Rockwell C 57-63, this pin delivers the wear resistance and shear strength required in demanding fixture, tooling, and machine component applications. The pin measures 10 mm in diameter and 40 mm in overall length, conforming to DIN 7979D standards. One end is rounded for guided insertion, and the opposite end is threaded to allow controlled extraction without damaging the bore or surrounding components.

This dowel pin is suited for use in jigs, fixtures, dies, and precision mechanical assemblies where repeatable part location is critical. The flat vent design allows air and fluid to escape during press-fit installation, reducing hydraulic lock. It is commonly installed by toolmakers, machinists, and maintenance technicians working in production environments, fabrication shops, and industrial maintenance settings. Sold in a package quantity of five pins.

Key Features

• Flat vent design prevents hydraulic lock during press-fit installation
• DIN 7979D standard ensures dimensional interchangeability with conforming bores
• Alloy steel construction with Rockwell C 57-63 hardness for wear and shear resistance
• One rounded end for guided entry, one threaded end for controlled pull-out extraction
• 10 mm diameter x 40 mm length for common mid-range alignment applications
• Package quantity of 5 pins per order unit

Compatibility

Designed as an OEM-style replacement or standard-service dowel pin for use in any fixture, die, or mechanical assembly with a DIN 7979D-conforming 10 mm diameter bore.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician using a press or appropriate driving tool sized for the bore. De-energize and lock out all machinery before servicing any assembly containing dowel pins. The threaded extraction end requires a matching extraction tool or slide hammer adapter for clean removal without bore damage. Verify bore tolerance and surface condition prior to installation to ensure proper fit per DIN 7979D specifications.
