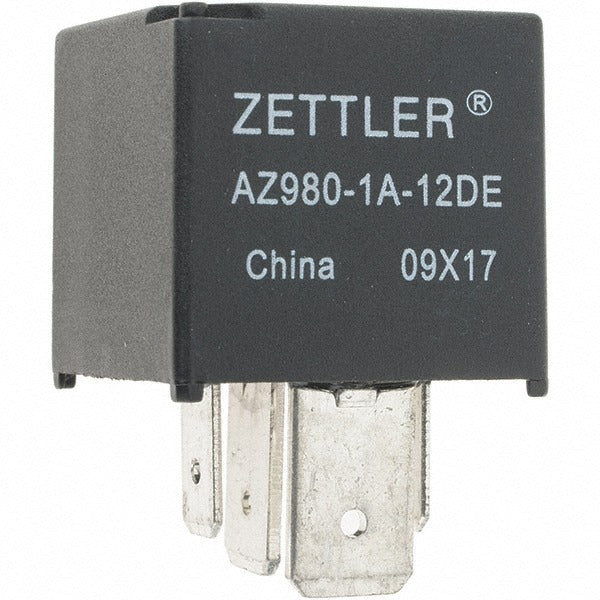

Value Collection AZ980-1A-12DE General Purpose Relay 80A 12VDC

Product Description

The VALUE COLLECTION AZ980-1A-12DE is an electromechanical general purpose relay designed for high-current switching applications in automotive, industrial, and equipment control circuits. Rated at 80 amps at 14 VDC with a 12 VDC coil, this relay uses a single-pole single-throw (SPST) contact form to control one load circuit. Its quick connect terminals and compact square base make it well suited for panel mounting and harness integration. Electricians, automotive technicians, and equipment service pros install this type of relay to switch high-amperage loads from a low-current control signal.

This relay is a common fit for 12-volt DC systems requiring robust load switching. Typical applications include engine management auxiliary circuits, cooling fan control, fuel pump switching, lighting relay blocks, and general-purpose equipment control panels. The square base profile and 4-pin quick connect configuration align with standard relay socket footprints used across a wide range of 12-volt control system designs.

Key Features

• 80-amp contact rating at 14 VDC for high-current load switching
• 12 VDC coil voltage for direct integration with 12-volt control circuits
• SPST contact form provides a single normally open switching path
• Quick connect terminals allow tool-free socket installation and removal
• Compact square base measuring approximately 1.142 inches wide by 1.043 inches high by 1.142 inches deep
• 4-pin configuration compatible with standard relay socket layouts

Compatibility

Designed as a general-purpose 12 VDC electromechanical relay suitable for automotive, industrial, and equipment control applications requiring SPST switching at up to 80 amps.

Installation Notes

Installation should be performed by a qualified electrician or technician familiar with 12-volt DC control circuits. Disconnect and isolate the power source before installing or removing the relay. Ensure the socket or terminal connections match the quick connect pin configuration and are rated for the full load current. Do not exceed the rated contact current, as overloading the relay contacts will cause premature failure or heat damage.
