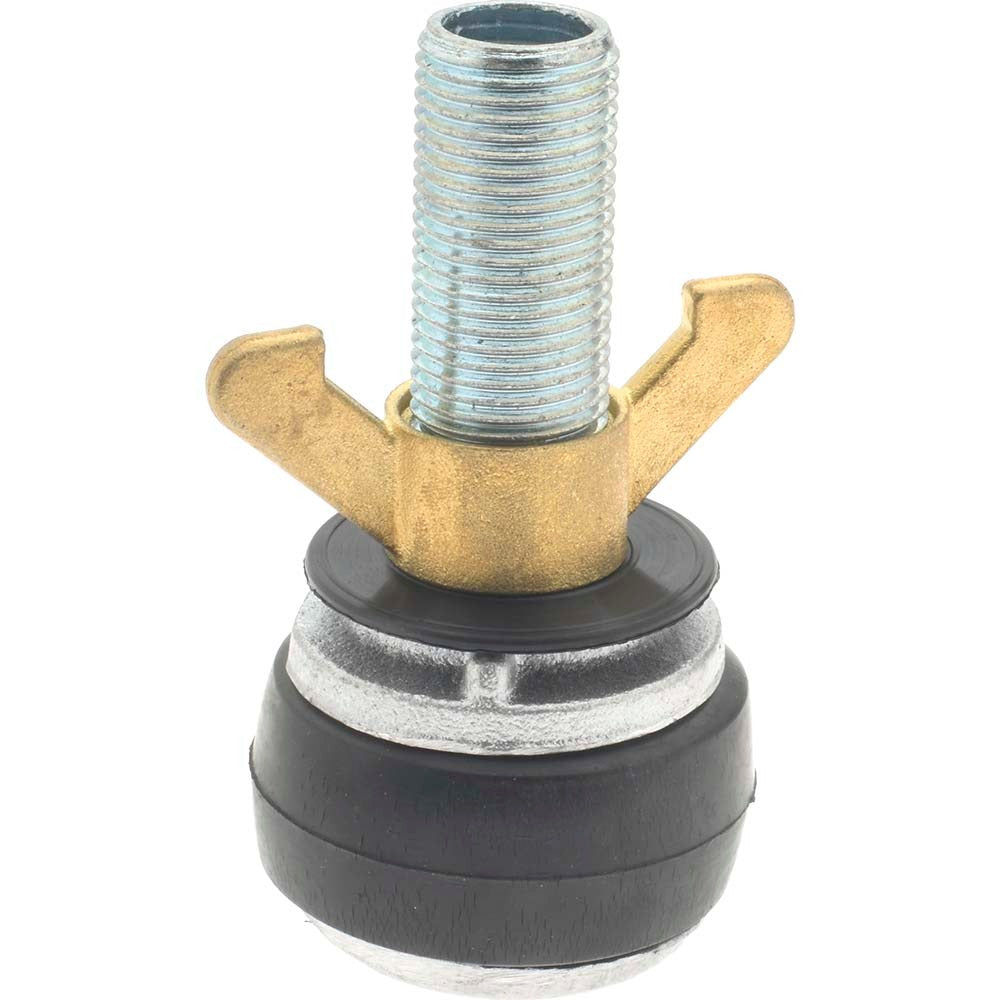

Value Collection AP02.00 Aluminum Expansion Plug 9 Psi

Product Description

The VALUE COLLECTION AP02.00 is an aluminum expansion plug designed to seal and pressure-test pipe systems by expanding within the pipe bore to form a secure mechanical seal. The plug starts at an unexpanded diameter of 1.889 inches and expands to 2.440 inches, accommodating standard pipe inside diameters in that range. It is rated for a maximum working pressure of 9 psi and features a 1/2-inch stem diameter for tightening. This fitting is handled by plumbers and pipefitters during pressure testing, pipe isolation, or temporary shutoff operations.

This expansion plug is suited for residential and light commercial plumbing applications where a temporary or semi-permanent seal is needed in a metal pipe run. It is appropriate for use in drainage, waste, and vent lines as well as low-pressure supply-side test scenarios. The 1/2-inch stem accepts a standard wrench for controlled expansion. Its aluminum construction keeps weight low at 0.5 pounds while providing adequate corrosion resistance for most plumbing environments.

Key Features

• Expands from 1.889 inches to 2.440 inches to seat firmly inside the pipe bore
• Rated to 9 psi maximum working pressure
• 1/2-inch stem diameter for wrench tightening
• Aluminum construction — lightweight and corrosion resistant
• Lightweight at 0.5 pounds for easy single-hand placement

Compatibility

Designed as an OEM-style mechanical expansion plug for aluminum or compatible metal pipe with an inside diameter in the 1.889-inch to 2.440-inch range, typical of standard nominal pipe sizing in plumbing and HVAC drain systems.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Isolate the pipe section and relieve all system pressure before inserting the plug. Use an appropriate wrench on the 1/2-inch stem to expand the plug until it seats firmly against the pipe wall — do not overtighten beyond hand-snug plus the turns needed to achieve a seal. Confirm the system is depressurized before removing the plug after testing.
