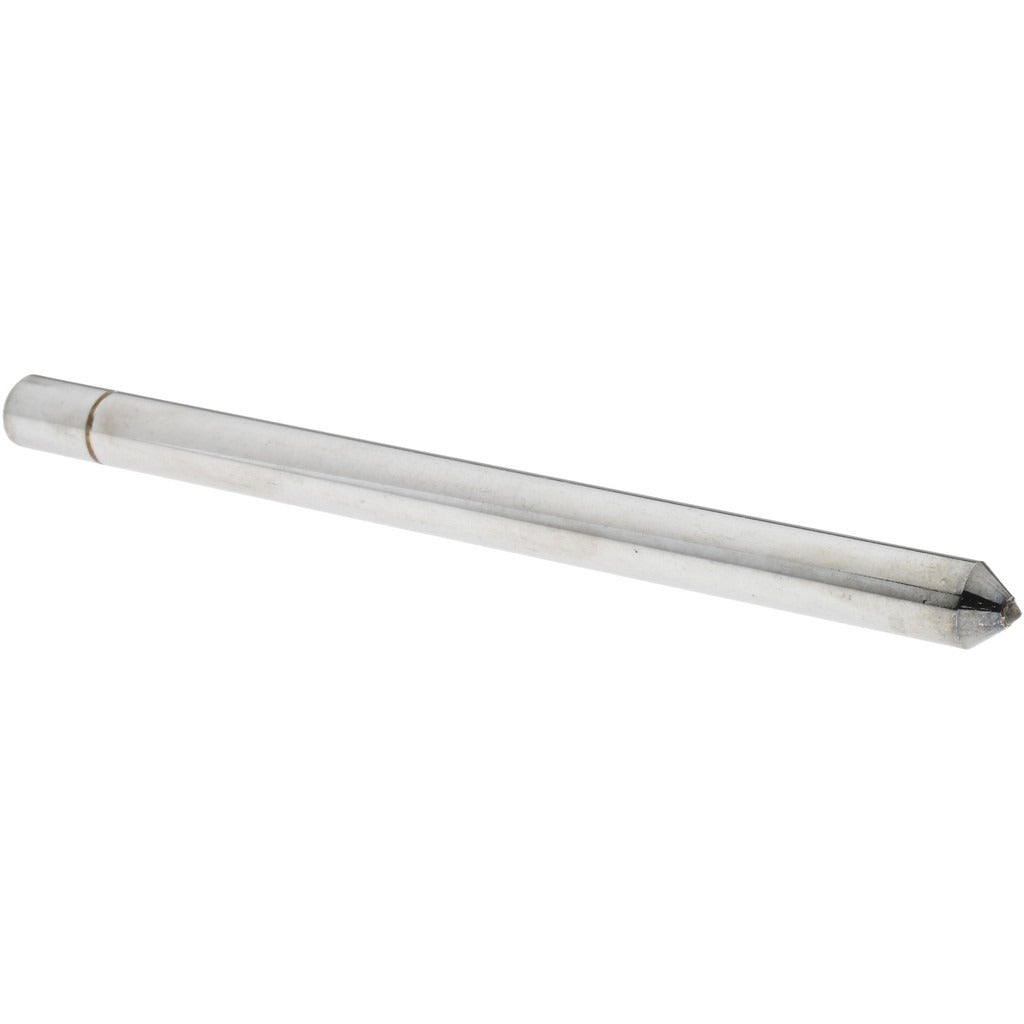

Value Collection ADD1782 Diamond Dresser 1/4 Carat

Product Description

The VALUE COLLECTION ADD1782 is a single-point diamond dresser used to true and dress abrasive grinding wheels in machine shop and industrial grinding applications. The tool uses a 1/4-carat industrial diamond tip to remove glazing and restore the cutting face of a wheel to its proper geometry and surface condition. The shank measures 7/16 inches in diameter and 6 inches in length, allowing it to seat securely in standard dresser holders on surface grinders, cylindrical grinders, and bench grinders. It weighs 0.12 pounds. Machinists and tool-and-die technicians are the primary users of this tool.

This dresser is suited for truing and dressing aluminum oxide, silicon carbide, and similar conventional abrasive wheels in both production and toolroom environments. It is used in surface grinding, cylindrical grinding, and tool-and-cutter grinding setups where consistent wheel geometry is critical to part accuracy and surface finish. The single-point configuration is appropriate for straight dressing passes where a controlled depth of cut is applied to the wheel face.

Key Features

• Single-point diamond tip for precise, controlled wheel dressing
• 1/4-carat industrial diamond for durability across repeated dressing cycles
• 7/16 inch shank diameter fits standard dresser holders
• 6 inch shank length provides reach and rigidity at the wheel
• Lightweight at 0.12 pounds for easy handling and positioning

Compatibility

Designed as a standard single-point diamond dresser suitable for use with conventional abrasive grinding wheels in typical surface, cylindrical, and bench grinding machine setups that accept a 7/16 inch shank dresser holder.

Installation Notes

Diamond dressers are installed and used by machinists and grinding machine operators. Always power down and lock out the grinding machine before mounting or removing the dresser from the holder. Secure the shank firmly in the dresser holder to prevent movement during the dressing pass. Apply coolant when required by the grinding operation, and advance the dresser across the wheel face at a steady, controlled feed rate to achieve a uniform wheel surface.
