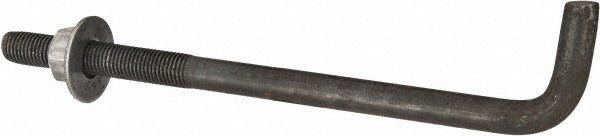

Value Collection ABL1001800-001BX Bent Anchor Bolt 18in

Product Description

The VALUE COLLECTION ABL1001800-001BX is a bent anchor bolt used to secure structural elements to concrete or masonry foundations. It is manufactured from Grade 2 steel and features a 1-8 inch thread size with an 18-inch overall length. Bent anchor bolts like this one are commonly installed during concrete pours or set into cured masonry using anchor adhesive. Licensed contractors, ironworkers, and general construction tradespeople install these fasteners in both residential and light commercial framing, mechanical equipment bases, and structural post applications.

This anchor bolt is suited for applications where a threaded fastener must be embedded in concrete or block to accept a nut and washer for structural attachment. Typical uses include securing sill plates, equipment pads, HVAC curbs, machinery bases, and structural steel column base plates. The bent end provides mechanical resistance against pull-out when the bolt is cast into concrete. It is sold and packaged as a single unit.

Key Features

• Grade 2 steel construction provides standard tensile strength for general structural fastening
• 1-8 inch thread size accepts standard 1-inch nuts and washers
• 18-inch overall length allows adequate embedment depth plus exposed thread for nut engagement
• Bent end resists axial pull-out when cast into concrete or grouted masonry
• Single-unit packaging allows procurement of exact quantities needed per project

Compatibility

Designed as a standard bent anchor bolt for use in residential and commercial construction applications requiring 1-8 inch threaded fasteners cast into or set into concrete and masonry foundations.

Installation Notes

Anchor bolts are typically installed by licensed contractors or ironworkers in accordance with local building codes and engineer-specified placement drawings. Before installation, verify embedment depth and projection length against project specifications. When casting into fresh concrete, position and brace the bolt securely before the pour to maintain plumb alignment. When setting into cured concrete, use a code-approved anchor adhesive system and allow full cure time before applying load.
