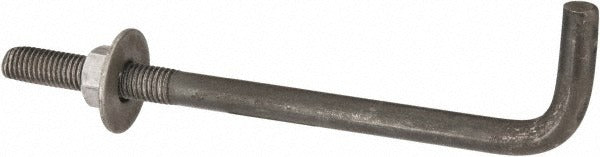

Value Collection ABL0621000-001BX Bent Anchor Bolt 5/8-11

Product Description

The VALUE COLLECTION ABL0621000-001BX is a bent anchor bolt used to secure structural elements, equipment bases, and fixtures to concrete or masonry substrates. It features a 5/8-11 thread size and a 10-inch overall length, making it suitable for medium-duty anchoring applications in mechanical, electrical, and structural installations. Manufactured from Grade 2 steel, the bolt delivers adequate strength for standard fastening tasks. The bent configuration allows embedment into concrete during pours or use with anchor sleeves, holding position while the structure is set above. Installation of this anchor bolt is common across commercial and industrial job sites.

This anchor bolt is used in applications requiring a reliable threaded connection at a concrete or masonry interface. Typical installations include equipment pads, structural sill plates, baseplate anchoring for HVAC equipment, and electrical panel mounting. The 5/8-11 thread accepts standard hex nuts and washers for above-surface clamping. At 10 inches overall length, this bolt accommodates typical embedment depths required for light to medium structural loads in residential and commercial construction.

Key Features

• 5/8-11 thread size compatible with standard nuts and washers
• 10-inch overall length for adequate embedment depth in concrete or masonry
• Grade 2 steel construction for standard-duty anchoring applications
• Bent anchor design maintains position during concrete placement
• Sold individually for single-bolt replacement or small-quantity needs

Compatibility

Designed as a standard replacement or new-installation anchor bolt for applications requiring a 5/8-11 threaded bent anchor bolt in concrete or masonry substrates.

Installation Notes

Anchor bolts of this type are typically installed by ironworkers, structural contractors, or licensed mechanical trades during concrete pours or with appropriate anchor systems. Shut down and de-energize any adjacent equipment before working near existing anchor points. Follow applicable building codes and manufacturer embedment depth guidelines for the intended load rating. Do not substitute this bolt in applications requiring higher-grade or code-specified anchor hardware without engineering approval.
