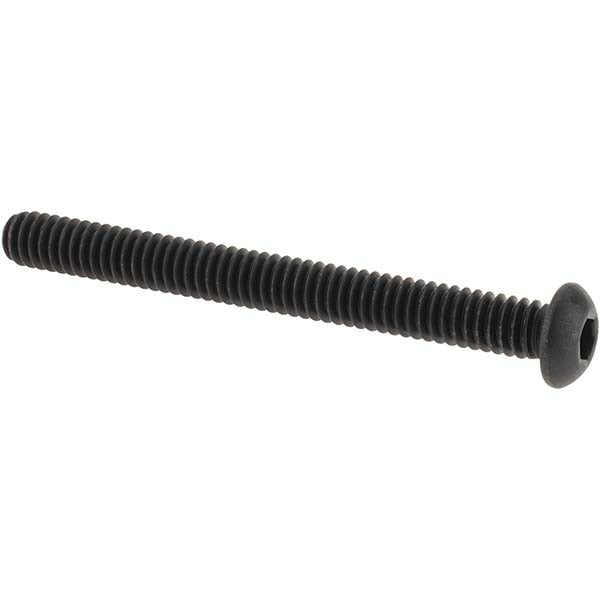

Value Collection A997064 Button Socket Cap Screw 1/4-20

Product Description

The VALUE COLLECTION A997064 is a 1/4-20 x 2-1/2 inch button socket cap screw manufactured from alloy steel with a black oxide coating. The button head profile provides a low-profile, rounded appearance suited for assemblies where head clearance is limited. Drive engagement is through a 5/32 inch hex socket. Threads are fully cut to UNC standards with a Class 3A fit, delivering close tolerances for secure, repeatable fastening. Hardness is rated 36-43 HRC, making these screws suitable for moderate to high-load mechanical connections. Sold in a package of 10.

These button socket cap screws are used across a wide range of mechanical assembly applications including equipment panels, enclosures, brackets, and structural subassemblies where a flush or near-flush fastener head is preferred. The black oxide finish provides mild corrosion resistance and reduces surface reflectivity, making them common in interior mechanical builds and light industrial environments. They are installed by maintenance technicians, millwrights, HVAC equipment assemblers, and general mechanical contractors working on trade equipment and machinery.

Key Features

• 1/4-20 UNC thread, Class 3A fit for tight tolerances
• 2-1/2 inch length under head, fully threaded
• 5/32 inch hex socket drive for standard Allen key or hex bit
• Alloy steel construction rated 36-43 HRC hardness
• Black oxide coating for mild corrosion resistance and low reflectivity
• Meets ANSI/ASME B18.3 and ASTM F835 fastener standards

Compatibility

Designed as a standard 1/4-20 UNC button socket cap screw suitable for mechanical assemblies requiring a low-profile head and hex socket drive in alloy steel construction.

Installation Notes

Install using a 5/32 inch hex key or hex socket bit. Ensure mating threads are clean and free of debris before driving. De-energize and lock out any equipment before fastener replacement or adjustment on live assemblies. Torque to values specified in the equipment manufacturer's documentation for the given application and material stack-up.
