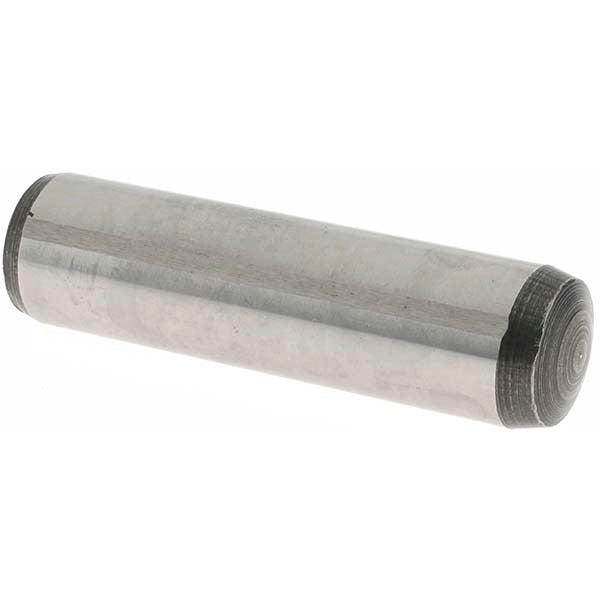

Value Collection A996667 Dowel Pin 16mm X 60mm Alloy Steel

Product Description

The VALUE COLLECTION A996667 is a flat vent pull out dowel pin manufactured from alloy steel to DIN 7979D standards. It measures 16 mm in diameter and 60 mm in overall length, with one rounded end and one threaded end for pull-out removal. The pin is through-hardened to a Rockwell C hardness of 57-63, providing reliable resistance to shear forces and wear in precision location applications. Machinists, toolmakers, and maintenance technicians install these pins to align molds, fixtures, dies, and machine components where repeatable positioning is critical.

This dowel pin is suited for use in industrial tooling, jig and fixture assembly, die sets, and general precision machining applications. The flat vent feature allows air and fluid to escape during press-fit installation, reducing hydraulic lock and preventing bore damage. The threaded end accepts a standard extraction tool for controlled removal without damage to the mating bore or surrounding material. Sold in a package of 5 pins.

Key Features

• DIN 7979D standard flat vent pull out design for precision location use
• Alloy steel construction with Rockwell C 57-63 hardness for high shear resistance
• One rounded end and one threaded end for tool-assisted extraction
• Flat vent along the shank prevents hydraulic lock during press installation
• 16 mm diameter x 60 mm overall length for consistent, repeatable fit
• Package quantity of 5 pins per order unit

Compatibility

Designed as an OEM-style replacement or stock component for tooling, fixtures, dies, and machine assemblies requiring DIN 7979D flat vent pull out dowel pins at 16 mm diameter.

Installation Notes

Installation and removal should be performed by a qualified machinist or maintenance technician using a press or appropriate driving tool. Power down and de-energize any machine before servicing dowel pin locations. Use a standard threaded extraction tool on the threaded end for controlled removal without impact to the bore. Verify bore tolerance and surface finish comply with DIN fit requirements before pressing the pin into place.
