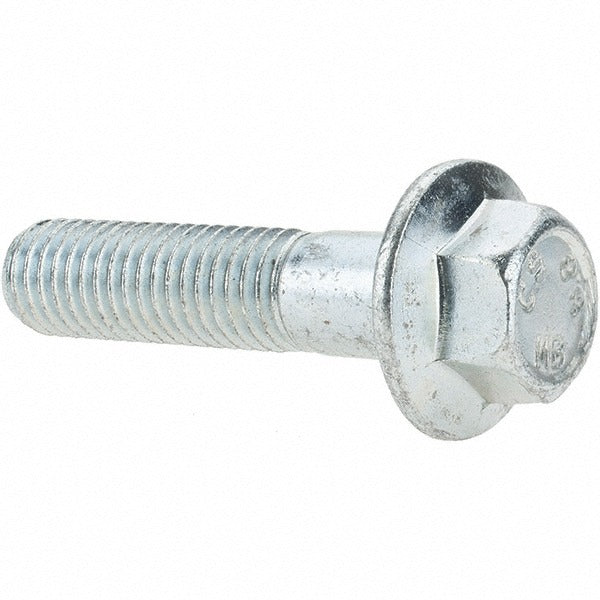

Value Collection A996576 M12 X 1.75 Flange Bolt 50mm 5pk

Product Description

The VALUE COLLECTION A996576 is a smooth flange bolt designed for metric fastening applications requiring a broad bearing surface without a separate washer. Sized at M12 x 1.75 with 50 mm of length under the head, this bolt features a 26.6 mm smooth flange that distributes clamping load across a wider area, reducing the risk of surface damage and joint loosening. The hex drive accepts a 16 mm socket or wrench. Manufactured from Grade 8.8 steel with a zinc-plated finish, the bolt delivers reliable tensile strength and basic corrosion resistance for general industrial and mechanical assemblies.

This bolt is suited for structural and mechanical fastening tasks in manufacturing, maintenance, and equipment assembly environments. The smooth flange face is appropriate for applications where a serrated flange could damage softer mating surfaces or where controlled torque distribution is required. Each package contains 5 bolts, making it practical for small-batch repairs or production line builds requiring metric fasteners that conform to established dimensional standards.

Key Features

• M12 x 1.75 thread size with 30 mm thread length and 50 mm length under head
• 26.6 mm smooth flange diameter provides integral washer-style bearing surface
• Grade 8.8 steel construction for dependable tensile and yield strength in general-purpose applications
• Zinc-plated finish for basic corrosion protection in typical indoor or sheltered environments
• Hex drive with 16 mm drive size compatible with standard metric sockets and wrenches
• Meets ASME/ANSI B18.2.3.4M and DIN 6921 dimensional standards

Compatibility

Designed as a standard metric flange bolt for general-purpose fastening applications requiring M12 x 1.75 thread specifications conforming to ASME/ANSI B18.2.3.4M and DIN 6921 standards.

Installation Notes

Installation is performed with a standard 16 mm metric wrench or socket driver. De-energize and lock out any equipment before replacing or adding fasteners in mechanical assemblies. Follow applicable torque specifications from the equipment manufacturer or relevant industry standards for Grade 8.8 metric fasteners. Do not use impact tools at full power without a torque-limiting setting, as overtorquing can strip threads or fracture the bolt shank.
