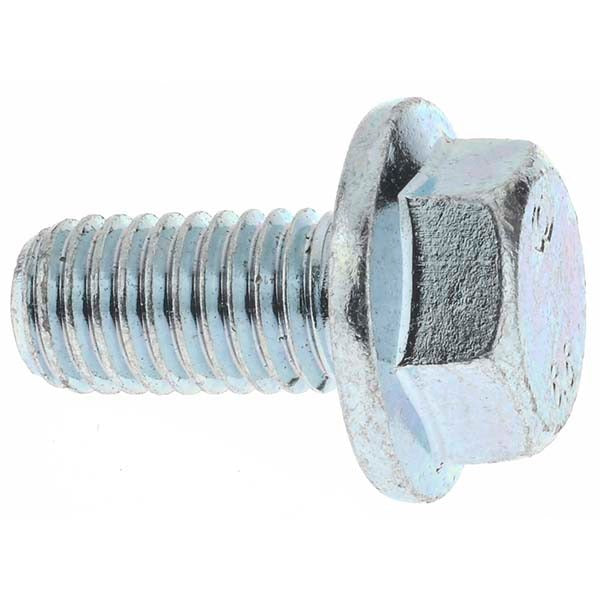

Value Collection A996562 Smooth Flange Bolt M10 X 1.5

Product Description

The VALUE COLLECTION A996562 is a smooth flange bolt designed for metric fastening applications requiring a wide bearing surface without a separate washer. The bolt features an M10 x 1.5 thread and a 20 mm length under head, with a 22.3 mm smooth flange diameter that distributes clamping load evenly across the mating surface. Manufactured from Grade 8.8 steel with a zinc-plated finish, it meets ASME/ANSI B18.2.3.4M and DIN 6921 standards. A 15 mm hex drive allows installation with standard metric wrenches or sockets. This fastener is used by maintenance technicians, millwrights, and mechanical assemblers across industrial and commercial applications.

This bolt is suited for general metric assembly work where a flanged head is preferred to eliminate a separate flat washer. Typical applications include equipment frames, brackets, panels, and structural assemblies using metric hardware. The smooth flange face provides clean seating on machined or painted surfaces without risk of surface scoring. Sold in a package of 25 pieces, this bolt is appropriate for both bench stock replenishment and job-specific hardware kits in manufacturing, facility maintenance, and light industrial environments.

Key Features

• M10 x 1.5 metric thread with 20 mm length under head for precise fitment in standard metric assemblies
• 22.3 mm smooth flange diameter distributes clamping load and eliminates the need for a separate washer
• Grade 8.8 steel construction provides high tensile strength suitable for structural and mechanical fastening
• Zinc-plated finish offers corrosion resistance for general indoor and light-duty outdoor use
• Meets ASME/ANSI B18.2.3.4M and DIN 6921 dimensional standards for interchangeability and compliance
• 15 mm hex drive compatible with standard metric wrenches and socket sets

Compatibility

Designed as a standard DIN 6921 and ASME/ANSI B18.2.3.4M compliant metric flange bolt for use in any assembly specifying an M10 x 1.5 smooth flange hex bolt.

Installation Notes

Installation is performed by maintenance technicians, millwrights, or mechanical assemblers using a 15 mm metric wrench or socket. De-energize and lock out any equipment before replacing fasteners in mechanical assemblies. Verify thread engagement depth and mating material compatibility before torquing. Do not exceed the torque rating appropriate for Grade 8.8 M10 fasteners as specified by your applicable engineering or maintenance standard.
