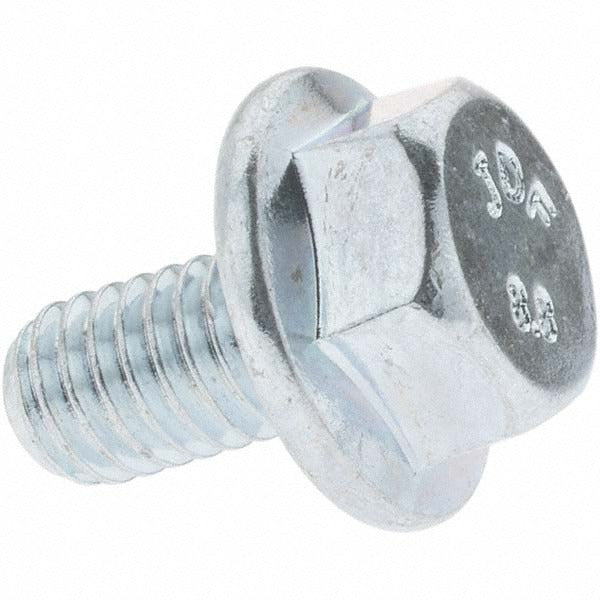

Value Collection A996544 Smooth Flange Bolt M6 X 1 50 Pack

Product Description

The VALUE COLLECTION A996544 is a smooth flange bolt designed for metric fastening applications requiring a clean bearing surface and controlled load distribution. Sized at M6 x 1 with a 10 mm length under head, it features a 14.2 mm smooth flange diameter that eliminates the need for a separate washer by spreading clamp load across a wider footprint. The hex drive accepts a 10 mm socket or wrench. Constructed from Grade 8.8 steel with a zinc-plated finish, this bolt delivers reliable tensile strength and corrosion resistance in general mechanical and structural assemblies. Each order includes 50 pieces.

This bolt is suited for light mechanical assemblies, equipment panels, brackets, and fixtures where a metric fastener with an integrated smooth flange is specified. The smooth flange face prevents surface marring on finished or coated components. Typical users include maintenance technicians, millwrights, and equipment assemblers working on machinery, automotive components, or fabricated steel structures requiring metric hardware conforming to standard dimensional specifications.

Key Features

• M6 x 1 thread with 10 mm length under head for compact fastening applications
• 14.2 mm smooth flange diameter distributes clamp load without a separate washer
• Grade 8.8 steel construction provides high tensile strength for general structural use
• Zinc-plated finish offers corrosion resistance in typical indoor and light-duty environments
• Hex drive with 10 mm drive size compatible with standard metric sockets and wrenches
• Conforms to ASME - ANSI B18.2.3.4M and DIN 6921 dimensional standards

Compatibility

Designed as a standard metric smooth flange bolt conforming to ASME - ANSI B18.2.3.4M and DIN 6921, suitable for use wherever an M6 x 1 smooth flange hex bolt is specified in metric assemblies.

Installation Notes

Installation is performed with a 10 mm hex socket or open-end wrench. Ensure mating threads are clean and free of debris before installation. Follow applicable equipment manufacturer torque guidelines for Grade 8.8 M6 fasteners, as no specific torque value is supplied with this product. Inspect the flange seating surface to confirm full contact before final tightening.
