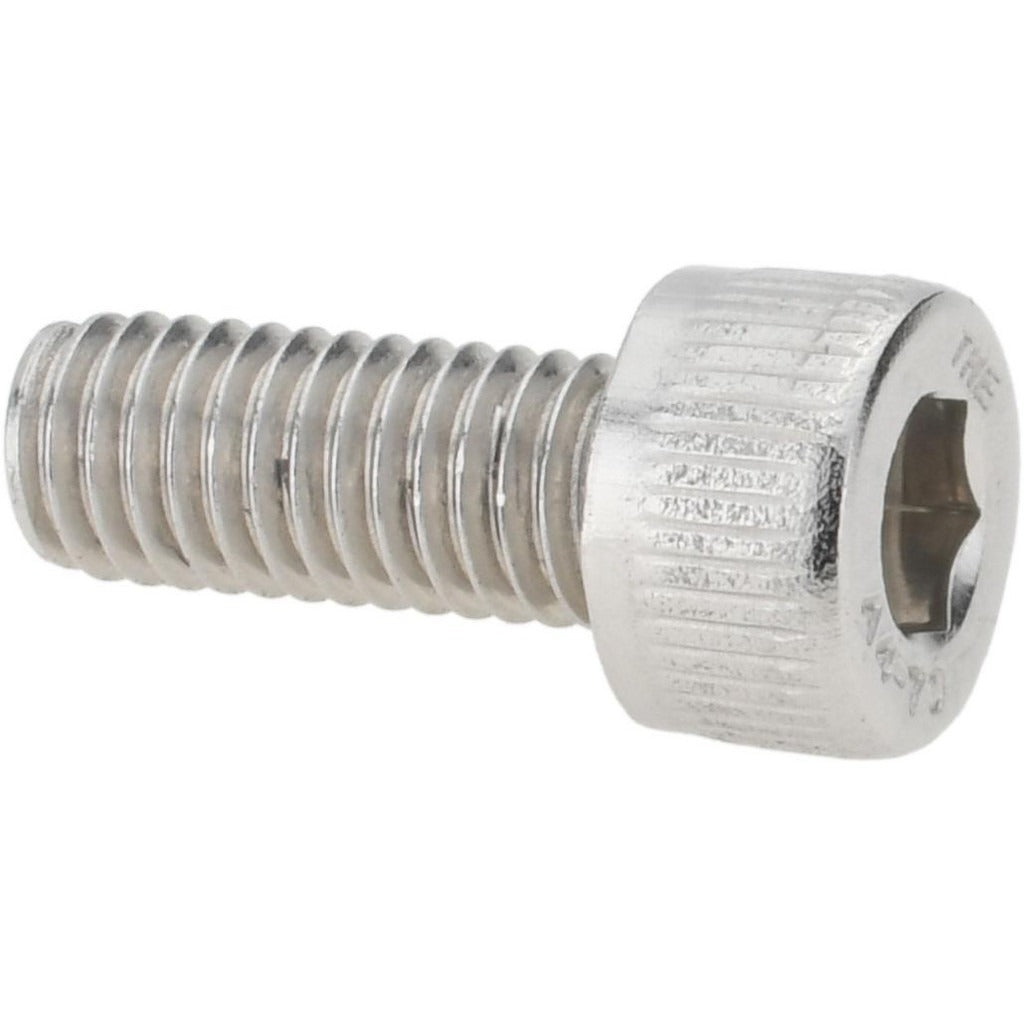

Value Collection A410184 M5 Hex Socket Cap Screw 316 Ss Din 912

Product Description

The VALUE COLLECTION A410184 is a fully threaded hex socket cap screw designed for precision fastening applications where corrosion resistance is critical. Manufactured to DIN 912 standards, this screw features an M5 x 0.80 thread pitch and a 12 mm length under head. The socket drive accepts a standard hex key for installation in confined spaces where a wrench cannot reach. Material grade is 316 austenitic stainless steel, offering superior resistance to chlorides and harsh environments. Each package contains 25 screws. This fastener is installed by machinists, maintenance technicians, fabricators, and mechanical contractors across a wide range of industrial and commercial applications.

The A410184 is suited for use in marine, food processing, chemical handling, and general industrial environments where stainless steel is specified to prevent corrosion or contamination. The M5 thread size and 12 mm under-head length make it a common fit for machine frames, enclosures, brackets, and equipment assemblies. The bright, uncoated finish is typical for 316 stainless and requires no additional surface preparation before installation.

Key Features

• M5 x 0.80 thread pitch — fully threaded along the entire 12 mm length under head
• 316 austenitic stainless steel (Grade A4) for high corrosion resistance in marine and chemical environments
• Hex socket drive accepts standard metric hex keys for torque in tight spaces
• Manufactured to DIN 912 dimensional standard for consistent fit with metric hardware
• Bright, uncoated finish — no plating to crack, chip, or contaminate
• Sold in packages of 25 screws

Compatibility

Designed as an OEM-style metric fastener compatible with M5 x 0.80 threaded holes per DIN 912 specifications, suitable for use in machine assemblies, enclosures, and equipment manufactured to metric fastener standards.

Installation Notes

Install using a metric hex key or hex bit driver sized for an M5 socket cap screw head. Apply thread lubricant or anti-seize compound when fastening into dissimilar metals to prevent galling, which is a known risk with stainless steel fasteners. Consult applicable mechanical or structural codes for torque requirements based on joint design and load. Inspect threads and mating tapped holes for damage or contamination before installation.
