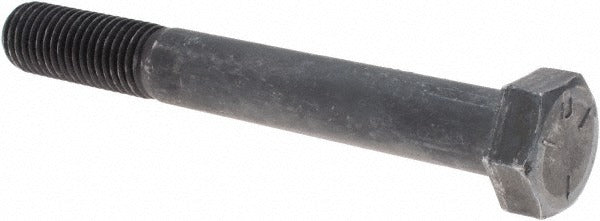

Value Collection 97184 Hex Head Cap Screw 3/4-10 X 6 in Grade 5

Product Description

The VALUE COLLECTION 97184 is a 3/4-10 UNC hex head cap screw designed for heavy-duty mechanical and structural fastening applications. Manufactured from Grade 5 steel with an uncoated finish, this fastener measures 6 inches under the head and features partial threading along the shank. It meets ASME B18.2.1 dimensional standards, making it a reliable choice for engineers, millwrights, and maintenance technicians who require consistent tolerances in bolted joint assemblies. The 3/4-10 thread designation indicates a 3/4-inch nominal diameter with 10 threads per inch, conforming to the Unified National Coarse thread form.

This cap screw is suited for general industrial, commercial construction, and mechanical equipment applications where Grade 5 strength requirements apply. Partial threading is appropriate for applications where a smooth shank is needed for shear loading or precise hole alignment. It is commonly installed in steel-to-steel connections, machinery frames, equipment mounting, and structural assemblies. Each package contains 25 fasteners with a minimum order quantity of 1 package.

Key Features

• 3/4-10 UNC thread form with partial threading for shank shear and alignment applications
• 6-inch length measured under the head per ASME B18.2.1 standard
• Grade 5 steel construction provides minimum 120,000 psi tensile strength per SAE specifications
• Uncoated finish suitable for dry or indoor environments or field coating applications
• Meets ASME B18.2.1 dimensional standard for hex head cap screws
• Sold in 25-piece packages

Compatibility

Designed as a standard inch-series hex head cap screw for use in any application requiring a 3/4-10 UNC thread pattern and a 6-inch grip length in Grade 5 steel.

Installation Notes

Installation should be performed by qualified mechanical or structural trades familiar with ASME and SAE fastener standards. Always verify that the mating nut or tapped hole matches the 3/4-10 UNC thread specification before installation. Torque fasteners using calibrated tooling appropriate to the joint design and engineering specifications. Inspect threads for damage before installation and do not install fasteners with stripped or corroded threads.
