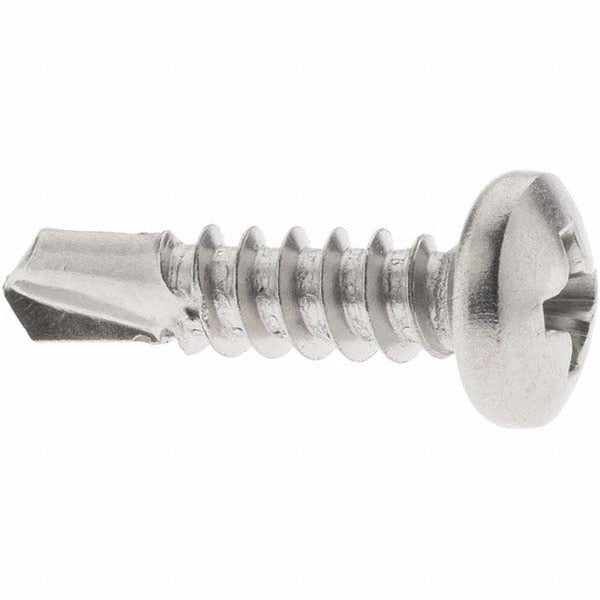

Value Collection 95551 No 10 Pan Head Self Drilling Screw

Product Description

The VALUE COLLECTION 95551 is a No. 10 self drilling screw with a pan head and Phillips drive, designed to drill its own pilot hole and tap threads in a single operation. Built from grade 410 stainless steel, it delivers corrosion resistance suitable for indoor and outdoor applications where mild to moderate moisture exposure is a concern. The No. 3 drill point handles light-gauge sheet metal and thin steel substrates without requiring a pre-drilled hole. The 3/4 inch length under head measurement keeps the fastener profile low while securing mating materials firmly. Installed by electricians, HVAC technicians, sheet metal workers, and general contractors across a wide range of light fabrication and equipment-panel applications.

This screw is suited for light sheet metal assembly, HVAC ductwork, electrical enclosures, junction boxes, and equipment panels where a self-tapping, self-drilling fastener in stainless steel is specified. The pan head profile distributes clamping load across a broader bearing surface than a flat head, making it a common choice where countersinking is not required. The Phillips drive is compatible with standard No. 2 Phillips bits and power drivers used in the field.

Key Features

• No. 3 drill point eliminates the need for a separate pilot hole in light-gauge metal
• Grade 410 stainless steel construction for corrosion resistance in exposed environments
• Pan head profile provides broad bearing surface without countersinking
• Phillips drive compatible with standard No. 2 power driver bits
• 3/4 inch length under head suits thin panel and sheet metal stacking
• Inch measurement system; UNSPSC 31161528 for procurement classification

Compatibility

Designed as an OEM-style replacement or standard-stocking self drilling screw for light-gauge sheet metal, HVAC ductwork panels, and electrical enclosure applications requiring a No. 10 pan head Phillips drive fastener.

Installation Notes

Self drilling screws in this size range are typically installed by sheet metal workers, HVAC technicians, and electricians using a power driver set to a controlled clutch setting to avoid overdriving and stripping the threads. De-energize any electrical enclosure or equipment before fastening panels or covers. Use the correct No. 2 Phillips bit to minimize cam-out and protect the drive recess. Follow applicable sheet metal and enclosure assembly guidelines per NEC or local mechanical codes where required.
