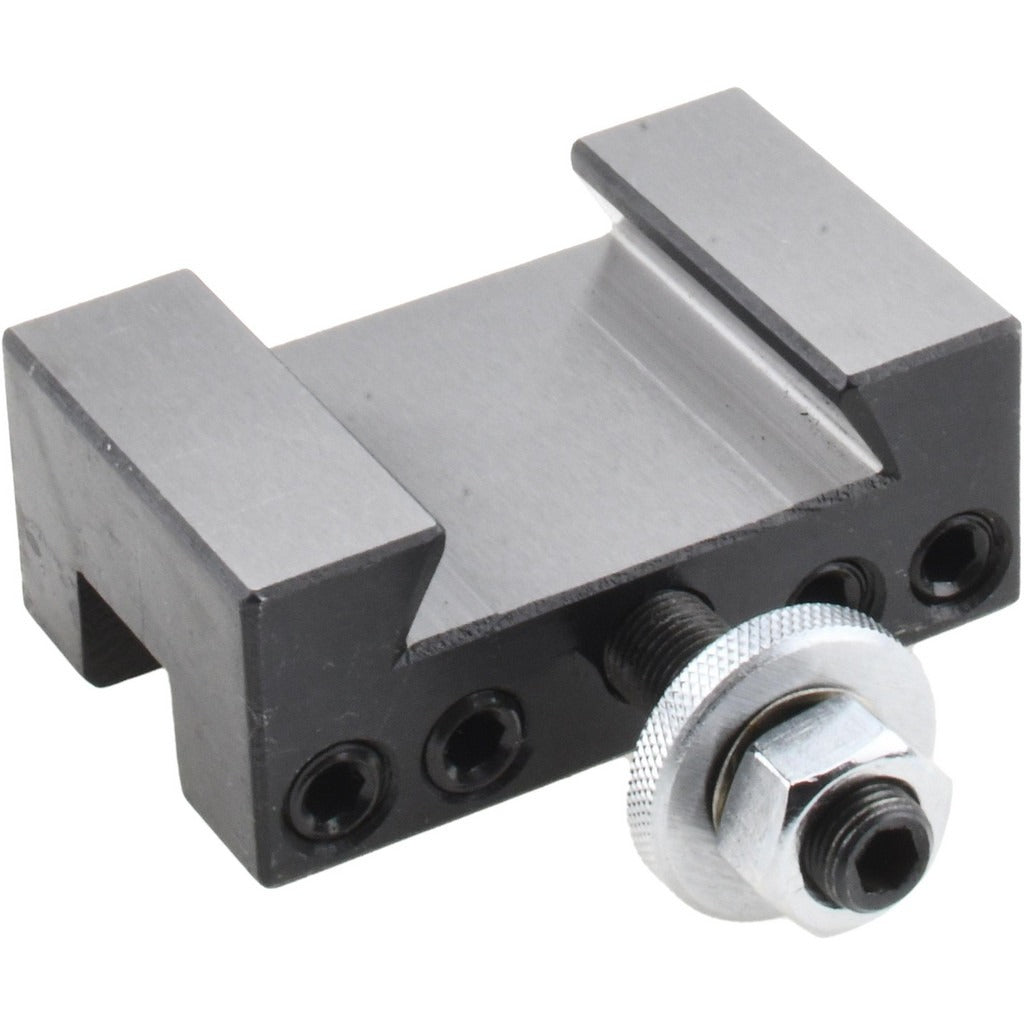

Value Collection 950-12011 Bxa Turning Facing Tool Post Holder

Product Description

The VALUE COLLECTION 950-12011 is a BXA Series Number 1 turning and facing tool post holder designed for engine lathes with a swing range of 10 to 15 inches. It accepts tool bits from 1/4 inch to 5/8 inch and has a maximum cutting tool size of 5/8 inch. With an overall height of 1-3/4 inches and an overall length of 3.15 inches, this holder is built to rigid tolerances for consistent tool positioning and repeatable cuts. The centerline height is 1-1/8 inches. Machinists and tool room technicians install this holder as part of a BXA quick-change tool post system on mid-size manual lathes.

This holder is suited for general turning and facing operations on manual engine lathes in the 10 to 15 inch swing class. It fits into BXA quick-change tool post systems, making it a standard component in job shops, maintenance departments, and machine tool training environments. The Number 1 designation identifies it as a straight turning and facing holder within the BXA series lineup. Through-coolant is not supported on this holder.

Key Features

• BXA Series Number 1 turning and facing holder for lathes with 10 to 15 inch swing
• Accepts tool bits from 1/4 inch to 5/8 inch
• Maximum cutting tool size of 5/8 inch
• Centerline height of 1-1/8 inches for consistent tool alignment
• Compact overall length of 3.15 inches and height of 1-3/4 inches
• No through-coolant passage

Compatibility

Designed for use with BXA quick-change tool post systems on manual engine lathes with a swing of 10 to 15 inches (330 to 380 mm).

Installation Notes

Installation is performed by a machinist or tool room technician. Power down and bring the lathe spindle to a complete stop before changing or adjusting tool post holders. Secure the holder firmly in the quick-change tool post before taking any cuts, and verify centerline height alignment with a reference gauge before commencing facing operations. Follow the lathe and tool post manufacturer guidelines for clamping torque and holder seating.
