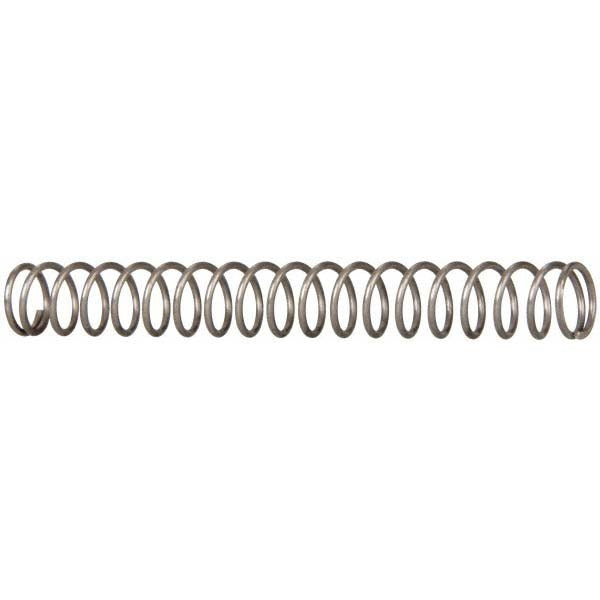

Value Collection 94126133 Compression Spring 0.24 in Od

Product Description

The VALUE COLLECTION 94126133 is a small-diameter compression spring suited for light-load mechanical assemblies. It measures 0.24 inches in outside diameter with a 2-inch free length and a wire diameter of 0.026 inches. The spring delivers a spring rate of 2.23 lb/in and handles a maximum working load of 2.77 pounds. The solid height is 0.576 inches, indicating a relatively high number of active coils for its length. These springs are packaged in quantities of 10 and are used across maintenance, repair, and light fabrication applications by mechanical technicians and tradespeople.

This compression spring fits applications requiring a narrow outside diameter of 0.24 inches and a recommended hole diameter of 0.25 inches. Typical use cases include actuator mechanisms, valve assemblies, latching hardware, and instrumentation components where light, consistent return force is needed. The 2-inch free length provides adequate travel for most small-mechanism designs. Sold in a pack of 10, this spring suits both single-repair jobs and small-batch production or maintenance kits.

Key Features

• Outside diameter of 0.24 inches fits a 0.25-inch hole diameter
• 2-inch free length with a solid height of 0.576 inches
• Spring rate of 2.23 lb/in for consistent, predictable deflection
• Maximum working load of 2.77 pounds
• Wire diameter of 0.026 inches for light-duty load requirements
• Packaged in quantities of 10 for repair stock or small assemblies

Compatibility

Designed as a standard compression spring for light-load mechanical assemblies requiring a 0.24-inch outside diameter and a 2-inch free length. Verify spring rate, solid height, and hole clearance against application requirements before installation.

Installation Notes

Installation is performed by mechanical technicians or maintenance personnel. Always de-energize and de-pressurize the assembly before replacing a compression spring. Confirm that the mating bore diameter, travel length, and load requirements match the spring specifications prior to installation. Do not compress the spring beyond its solid height during assembly.
