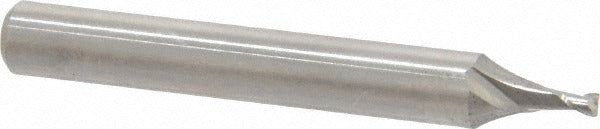

Value Collection 934-000-201 Square End Mill Hss 2 Flute

Product Description

The VALUE COLLECTION 934-000-201 is a single-end square end mill ground from high speed steel for general-purpose milling of ferrous and non-ferrous materials. The tool measures 0.0625 inches in cutting diameter with a 0.09375-inch length of cut and a 1.5-inch overall length on a 0.1875-inch straight shank. A 40-degree helix angle promotes smooth chip evacuation at small diameters, and the bright uncoated finish suits applications where coating cost is not justified. With a stub-length configuration and center-cutting geometry, this mill can both plunge and feed laterally in a single setup. It is typically installed in CNC machining centers, knee mills, and manual milling machines by machinists and tool-and-die technicians.

This end mill is intended for light material removal in tight-tolerance applications where a small-diameter tool is required. The 2-flute spiral design keeps chip load manageable at reduced feed rates typical of 1/16-inch tooling. Its stub length provides additional rigidity relative to longer reach versions of the same diameter. Right-hand cut and right-hand flute orientation are standard for conventional milling spindle rotation. The Series 856 designation identifies this as part of a defined product family within the VALUE COLLECTION line.

Key Features

• Center-cutting geometry allows direct plunge entry without a pre-drilled pilot hole
• 40-degree helix angle promotes chip flow and reduces cutting forces at small diameters
• High speed steel construction provides toughness for interrupted cuts and manual-feed applications
• Bright uncoated finish is compatible with cutting oils and water-soluble coolants
• Straight shank fits standard collets and end mill holders sized for 0.1875-inch shanks
• Stub length design maximizes rigidity for this diameter class

Compatibility

Designed as an OEM-style replacement or direct-use single-end square end mill for milling machines and machining centers accepting a 0.1875-inch straight shank; no specific model compatibility data was provided for this SKU.

Installation Notes

Installation is performed by machinists using a collet or end mill holder matched to the 0.1875-inch shank diameter. The spindle must be fully stopped and the machine locked out before changing tooling. Verify runout at the collet before cutting, as small-diameter end mills are sensitive to even slight misalignment. At 0.0625-inch diameter, feed rates and depth of cut should be conservative to avoid tool breakage.
