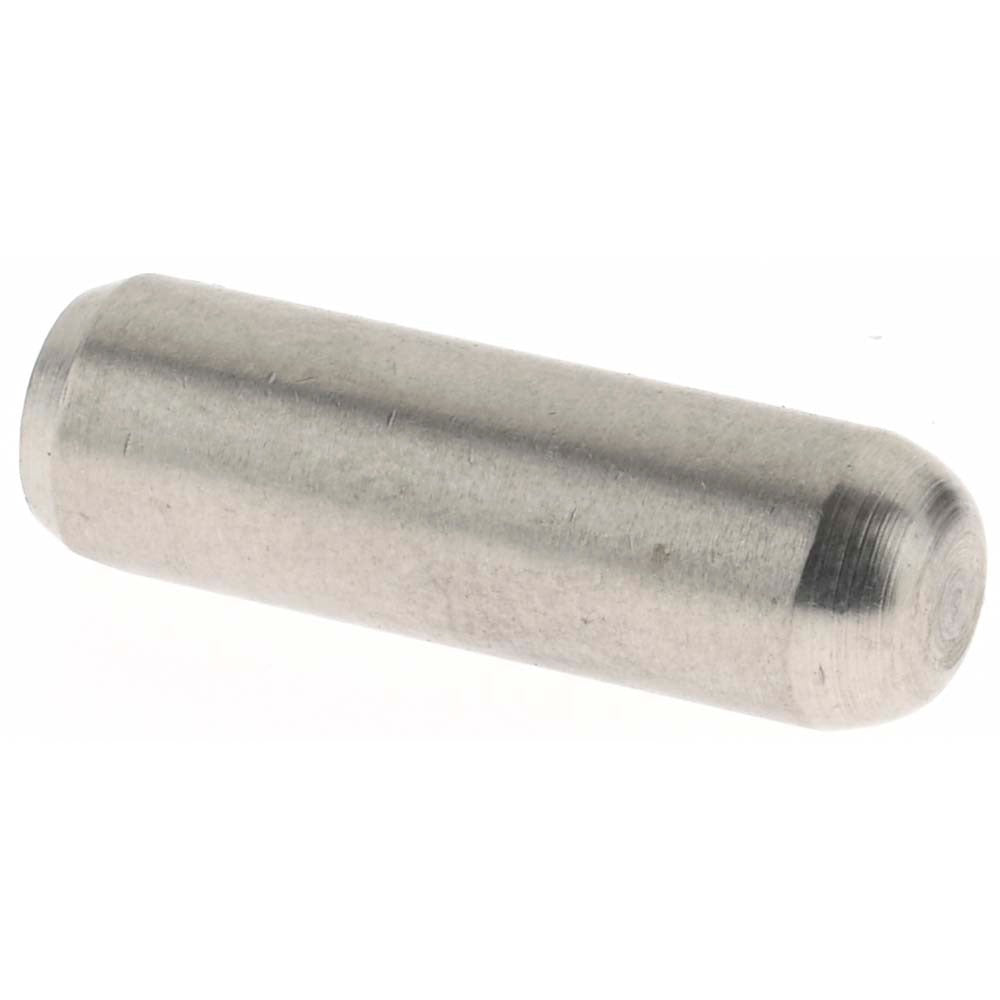

Value Collection 92284 Pull Out Dowel Pin 5/16x1 in Ss 18-8

Product Description

The VALUE COLLECTION 92284 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright finish. Dowel pins are precision alignment fasteners used to locate and register mating components in assemblies, fixtures, and tooling. This pin measures 5/16 inch in diameter with an overall length of 1 inch and holds a diameter tolerance of 0.0002 inches, supporting accurate, repeatable part alignment. The 18-8 stainless steel construction provides corrosion resistance suitable for general industrial, food-processing, and marine-adjacent environments. The pull out style includes a threaded or tapped extraction feature that allows removal from blind holes without damage to the bore or surrounding material.

This dowel pin is used in fabrication shops, machine shops, and maintenance environments where precise component alignment is required. Typical applications include fixture building, die sets, jig plates, and machine frames where controlled press or slip fits are needed. Sold in a package quantity of 25, this pin suits both production assembly work and MRO stock. It is installed and serviced by machinists, tool and die makers, and millwrights working on mechanical assemblies that require tight positional tolerances.

Key Features

• Pull out design allows extraction from blind holes without bore damage
• 18-8 stainless steel construction provides corrosion resistance for demanding environments
• Diameter tolerance of 0.0002 inches supports precise, repeatable alignment
• Bright finish for clean surface contact and dimensional consistency
• Package quantity of 25 supports production assembly and MRO restocking

Compatibility

Designed as a standard pull out dowel pin for use in any application requiring a 5/16 inch diameter, 1 inch overall length alignment pin in a slip or press fit bore.

Installation Notes

Installation is typically performed by machinists or tool and die makers using a press or mallet with an appropriate driver. Ensure the receiving bore is clean, deburred, and dimensioned to the correct fit class before installation. For pull out pins installed in blind holes, verify the extraction thread or feature is accessible before seating the pin fully. Power down and de-energize any associated equipment before working on assemblies that contain these pins.
