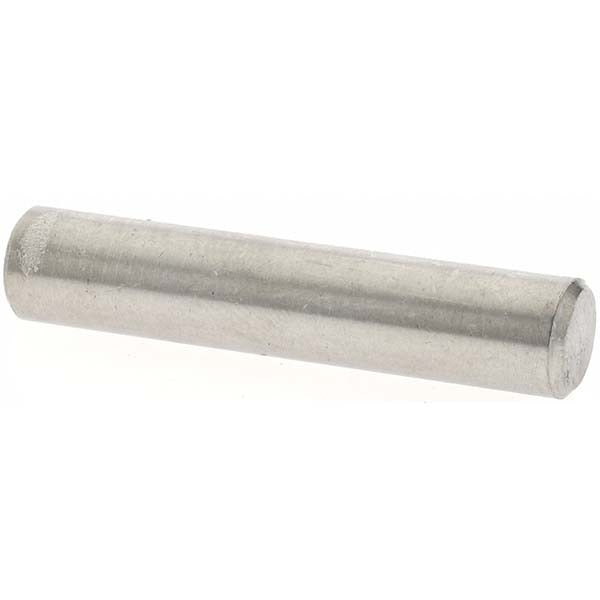

Value Collection 92278 Pull Out Dowel Pin 1/4x1.25in Ss 18-8 25pk

Product Description

The VALUE COLLECTION 92278 is a standard pull out dowel pin designed for precision alignment and locating applications in mechanical assemblies. Measuring 0.25 inches in diameter and 1.25 inches in overall length, this pin features a controlled diameter tolerance of 0.0002 inches, making it suitable for close-tolerance work where consistent fitment is critical. Manufactured from 18-8 stainless steel with a bright, uncoated finish, it delivers reliable corrosion resistance in both indoor and light industrial environments. Machinists, maintenance technicians, and assembly professionals install these pins in fixtures, jigs, and structural components where repeatable alignment is required.

Pull out dowel pins are used in a wide range of applications including machine tool fixtures, modular workholding setups, and mechanical sub-assemblies that require frequent disassembly and reassembly. The pull out style allows removal with standard extraction tools without damaging the mating bore. This pin is sold in a package quantity of 25, making it practical for bench stock, toolroom inventory, or scheduled maintenance kits in manufacturing and industrial maintenance settings.

Key Features

• Diameter of 0.25 inches with a tight tolerance of plus or minus 0.0002 inches for precise bore fitment
• Overall length of 1.25 inches suits shallow to moderate depth alignment applications
• 18-8 stainless steel construction provides corrosion resistance without additional coating
• Bright, uncoated finish maintains dimensional accuracy and allows direct inspection
• Pull out head design enables extraction without special pullers or bore damage
• Package quantity of 25 supports bench stock and multi-point assembly operations

Compatibility

Designed as a standard pull out dowel pin for use in precision-fit through-holes and blind holes requiring controlled alignment in general mechanical and industrial assembly applications.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press, mallet, or hand insertion depending on the fit class of the mating bore. Ensure the receiving bore is clean, deburred, and dimensionally verified before driving the pin to prevent galling of the stainless steel surface. When removing the pin, use a dedicated pin extractor or threaded pull-out tool matched to the head style to avoid bore damage. Follow applicable facility safety and lockout/tagout procedures whenever servicing assemblies under load or pressure.
