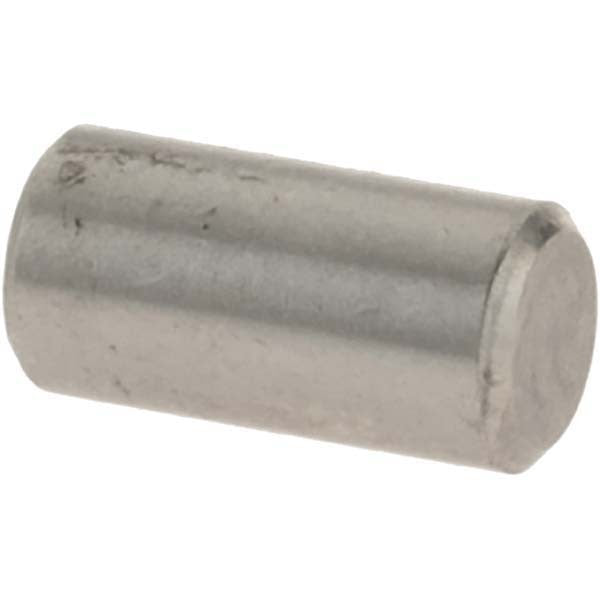

Value Collection 92268 Pull Out Dowel Pin 3/16x3/8 in Ss 18-8

Product Description

The VALUE COLLECTION 92268 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. Measuring 3/16 inch in diameter and 3/8 inch in overall length, this pin is used to locate, align, or retain mating components in assemblies where precision and corrosion resistance are required. The 18-8 stainless steel grade provides solid resistance to rust and oxidation, making it suitable for use in wet, humid, or chemically exposed environments. The pull out style features a threaded or recessed end to allow removal without damage to the surrounding bore. Sold in packages of 25.

Pull out dowel pins are commonly installed in manufacturing, maintenance, and mechanical assembly applications where repeated disassembly and reassembly is necessary. They are used in fixture plates, jigs, machine housings, pump bodies, and similar precision assemblies. The stainless steel construction makes them appropriate for food processing equipment, marine hardware, and other corrosion-sensitive environments. This pin size suits lighter-duty locating applications in both OEM production and field repair contexts. Installed by machinists, millwrights, and maintenance technicians.

Key Features

• 3/16 inch diameter with 0.0002 inch diameter tolerance for precise bore fit
• 3/8 inch overall length suits shallow locating and alignment applications
• 18-8 stainless steel construction resists corrosion in wet and chemically active environments
• Bright, uncoated finish maintains dimensional accuracy without coating buildup
• Pull out design allows clean removal without press or drift tools
• Packaged in quantities of 25 for production and service use

Compatibility

Designed as a standard pull out dowel pin for use in any application requiring a 3/16 inch diameter locating or alignment pin in a compatible bored or reamed hole.

Installation Notes

Pull out dowel pins are installed and removed by machinists or maintenance technicians using standard hand tools. Always de-energize and lock out any machine before servicing pinned assemblies. Bores should be reamed to proper tolerance before installation to ensure correct fit and function. Do not drive or press pull out style pins with a hammer, as this may damage the pull out feature.
