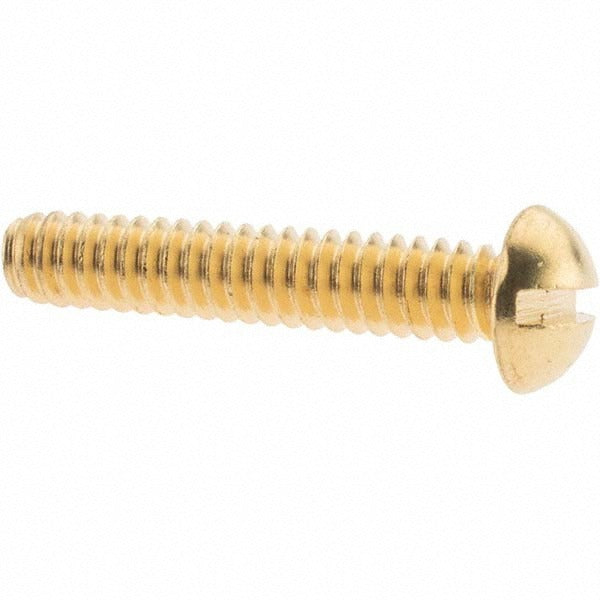

Value Collection 90568 10-24x1 Round Head Slotted Brass Screw

Product Description

The VALUE COLLECTION 90568 is a 10-24 x 1 inch round head slotted machine screw manufactured from brass. This fastener features a round head profile with a slotted drive, making it compatible with flat-blade screwdrivers. The thread size is 10-24 UNC with a length of 1 inch measured under the head, conforming to ASME B18.6.3 standards. Brass construction provides natural corrosion resistance and is well suited for applications requiring non-magnetic, non-sparking, or electrically conductive fastening. Technicians and tradespeople use this screw in electrical panels, plumbing fixtures, HVAC equipment, and general mechanical assemblies where brass is specified.

This machine screw is appropriate for light-duty mechanical and electrical fastening tasks across residential and commercial applications. Its round head and slotted drive make it a common choice for terminal boards, enclosure covers, and equipment housings where a low-profile head is needed. The 10-24 thread pitch is a widely used unified coarse thread size that pairs with standard 10-24 tapped holes or hex nuts. Installation without a washer is the standard configuration for this fastener. Sold in multiples of 50 units per minimum order quantity.

Key Features

• 10-24 UNC thread size with 1 inch length under head
• Round head profile for low-profile, flush-adjacent seating
• Slotted drive compatible with standard flat-blade screwdrivers
• Brass material offers corrosion resistance and non-magnetic properties
• Conforms to ASME B18.6.3 fastener standard
• No washer — designed for direct fastening into tapped holes or with standard nuts

Compatibility

Designed as a standard 10-24 UNC machine screw for use in any application requiring a round head slotted brass fastener conforming to ASME B18.6.3 specifications.

Installation Notes

Install using a flat-blade screwdriver sized to fit the slotted head; an undersized blade can damage the slot and reduce torque transfer. Brass is a softer alloy than steel — avoid overtightening, which can strip threads or deform the head. Ensure the mating hole is correctly tapped to 10-24 UNC before installation. When used in electrical enclosures or panels, follow applicable NEC guidelines for fastener material and torque requirements.
