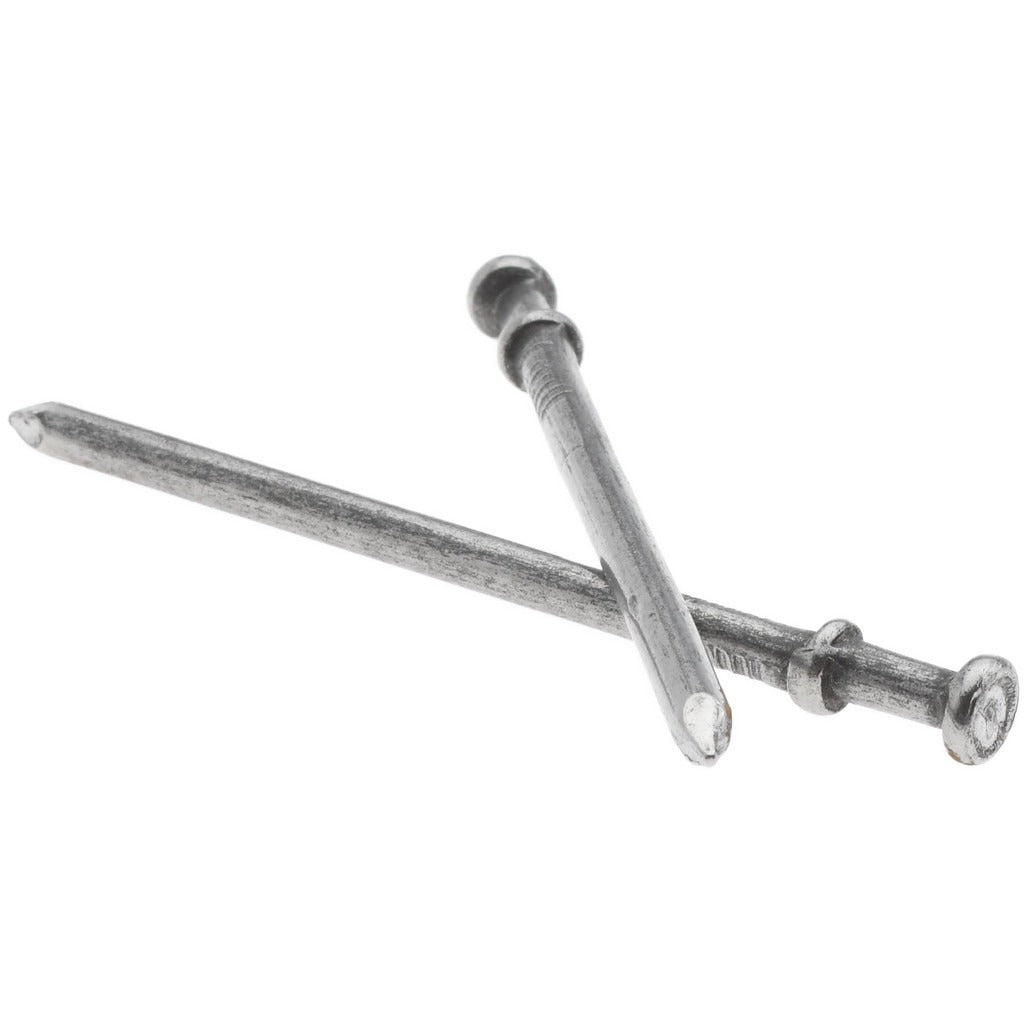

Value Collection 8DUP5 Duplex Nails 8D 10 Gauge 2.5 in

Product Description

The VALUE COLLECTION 8DUP5 is an 8D duplex nail designed for temporary fastening applications in construction and forming work. At 2.5 inches overall length and 10 gauge diameter, this nail features a smooth shank and a double-headed (duplex) design that allows easy removal after the fastened structure — such as concrete formwork or scaffolding — is no longer needed. The nail body is Grade 2 steel, providing adequate shear strength for temporary wood-to-wood connections. Contractors and carpenters reach for duplex nails when a fastener must hold securely during use but come out cleanly without damaging the material.

Duplex nails are a standard choice for concrete form construction, temporary bracing, and scaffolding assembly on residential and commercial job sites. The raised second head stands proud of the surface after driving, giving installers a positive grip point for a claw hammer or pry bar during disassembly. This makes them well suited for any application where formwork, shoring, or temporary structures must be broken down and reassembled repeatedly.

Key Features

• Double-headed duplex design allows fast, clean removal from temporary assemblies
• 8D penny size at 2.5 inches overall length suits standard lumber forming applications
• 10 gauge wire diameter provides consistent shear resistance for temporary connections
• Smooth shank drives easily and releases without excessive splitting of form lumber
• Grade 2 steel construction meets general-purpose structural fastener requirements
• Flat primary head seats flush against the work surface for a stable hold during service

Compatibility

Designed as a general-purpose 8D duplex nail compatible with standard wood concrete forms, scaffold planking, and temporary bracing lumber used in residential and light commercial construction.

Installation Notes

Duplex nails are installed by carpenters and general contractors using a standard claw hammer or framing nailer capable of accepting duplex-style collated fasteners where applicable. Drive the nail until the lower head seats firmly against the work surface, leaving the upper head exposed for later extraction. When stripping forms, use a cat's paw or flat pry bar against the upper head to pull the nail straight out and minimize lumber damage. Follow applicable local building codes and OSHA requirements for formwork and shoring assemblies.
