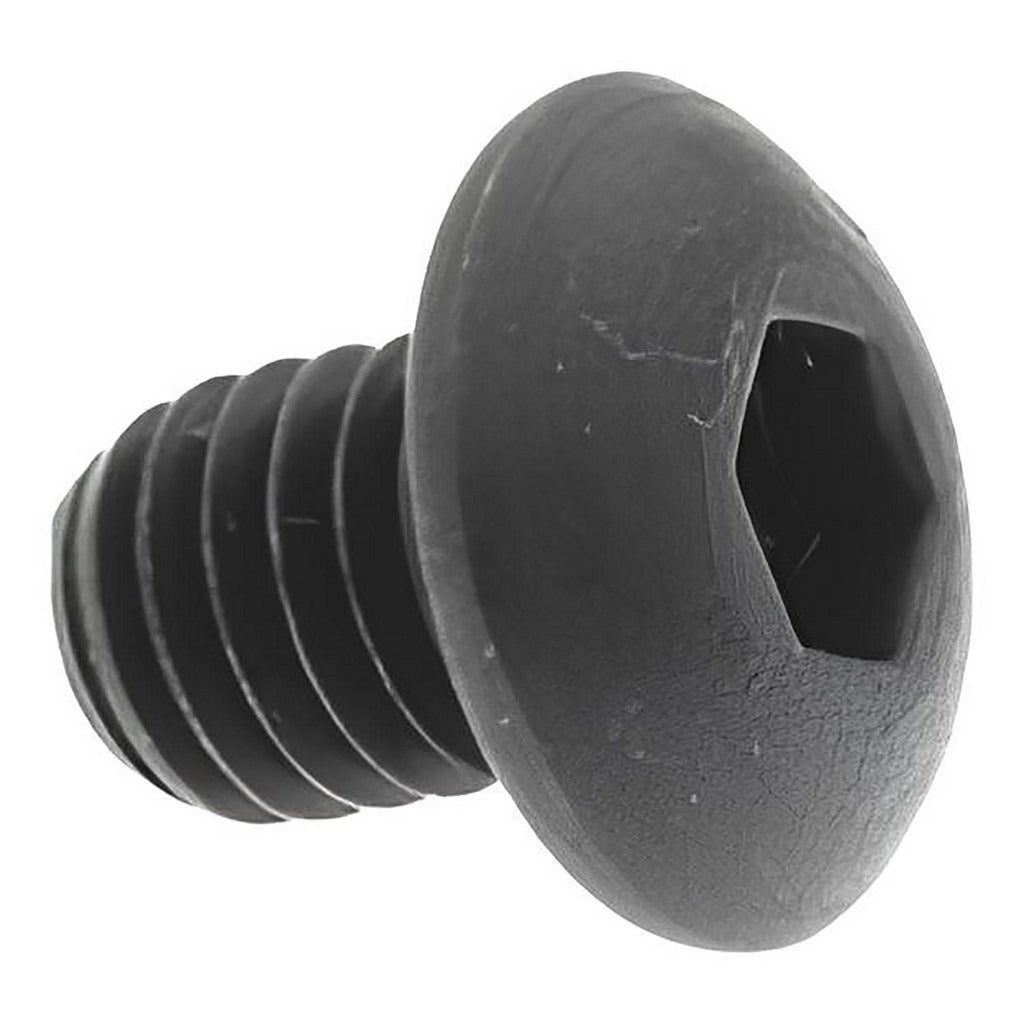

Value Collection 88546395 Button Socket Cap Screw 10-32

Product Description

The VALUE COLLECTION 88546395 is a button socket cap screw in a 10-32 UNF thread size with a 1/4 inch length under the head. Made from alloy steel and finished with a black oxide coating, this fastener is built for applications that require a low-profile head with strong torque resistance. The 1/8 inch hex socket drive accepts a standard hex key for installation and removal. Hardness is rated at 36-43 HRC, making these screws suitable for demanding mechanical assemblies. This listing covers a package quantity of 50 pieces, supplied in multiples of one package.

These button socket cap screws are used across a wide range of mechanical and industrial assembly applications. The low-profile button head is well suited for installations where clearance above the fastener is limited, such as panel mounting, enclosure assembly, and equipment fabrication. They are commonly installed by millwrights, maintenance technicians, and general mechanical trades working with steel or aluminum structures. The 10-32 UNF thread is a standard fine-thread designation found in precision equipment, electronics enclosures, and HVAC equipment panels.

Key Features

• 10-32 UNF fine thread with Class 3A thread fit for close-tolerance assemblies
• 1/4 inch length under head suits shallow fastening applications
• Alloy steel construction rated 36-43 HRC for high-strength performance
• Black oxide finish provides moderate corrosion resistance and a low-glare appearance
• 1/8 inch hex socket drive for use with standard Allen or hex keys
• Conforms to ANSI/ASME B18.3 fastener standard
• Pack of 50 screws with right-hand thread direction

Compatibility

Designed as an OEM-style replacement or general-use fastener for applications requiring a 10-32 UNF button socket cap screw with a 1/4 inch grip length and 1/8 inch hex drive, conforming to ANSI/ASME B18.3.

Installation Notes

Install using a calibrated 1/8 inch hex key or Allen driver. Power down or de-energize any equipment before accessing fastener locations in electrical or control panel assemblies. Avoid over-driving the screw, as the button head profile has lower torque resistance than a standard socket cap head. Follow applicable equipment manufacturer torque guidelines when specified.
