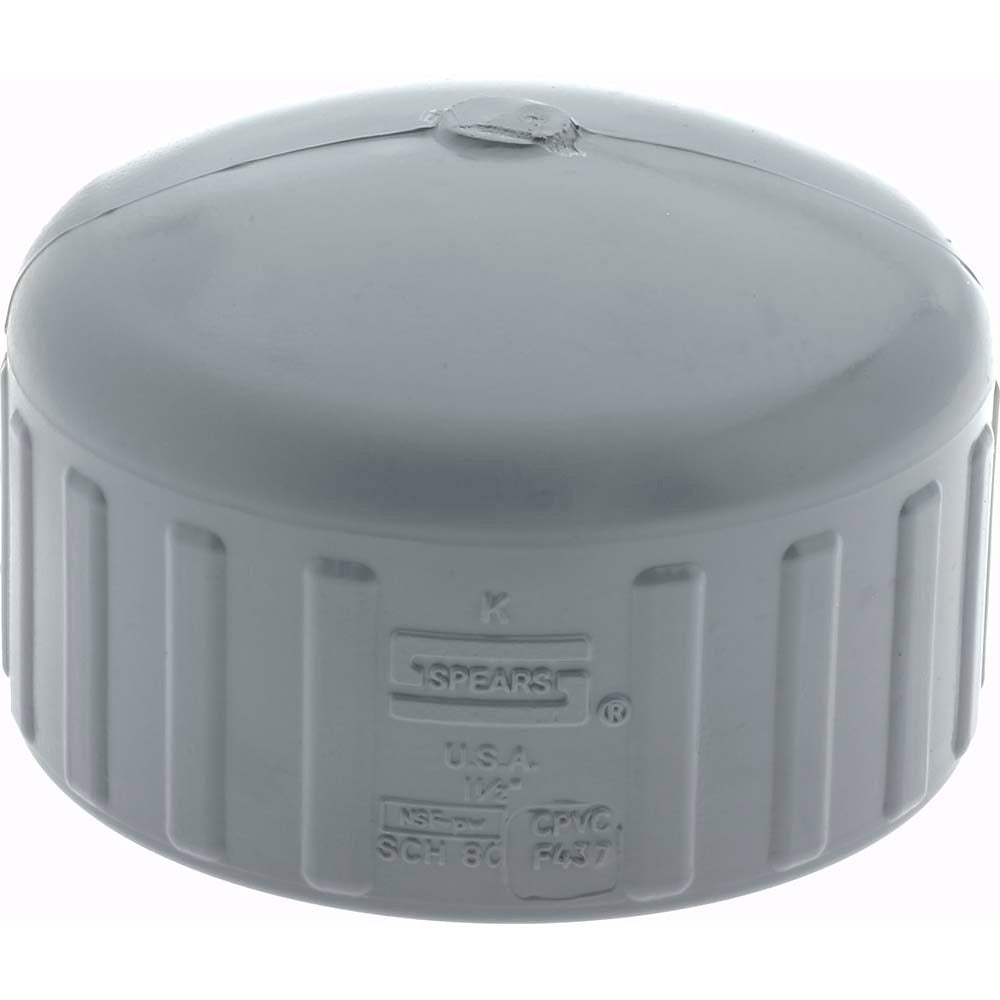

Value Collection 848-015C Cpvc End Cap 1.5 in Sch 80 Fipt

Product Description

The VALUE COLLECTION 848-015C is a Schedule 80 CPVC end cap designed to terminate 1-1/2 inch CPVC pipe runs with a female iron pipe thread (FIPT) end connection. Made from chlorinated polyvinyl chloride, this fitting handles the elevated pressure and temperature demands of industrial and commercial piping systems where standard PVC falls short. The Schedule 80 wall thickness provides extra strength compared to Schedule 40 fittings, making it suitable for higher-pressure applications. Plumbers and pipefitters install this cap to seal off pipe ends cleanly without welding or additional hardware.

This end cap is used in CPVC piping systems found in industrial process lines, chemical distribution, and hot and cold water systems where corrosion resistance and thermal tolerance are priorities. The FIPT connection allows it to thread directly onto male-threaded pipe or fittings. It is appropriate for both new installation and retrofit work where an existing Schedule 80 CPVC line needs to be capped off permanently or temporarily during pressure testing.

Key Features

• Schedule 80 CPVC construction for higher pressure ratings versus Schedule 40
• 1-1/2 inch fitting size compatible with standard CPVC pipe of the same nominal diameter
• FIPT end connection threads onto male pipe threads without solvent cement
• CPVC material resists corrosion, chlorine, and many industrial chemicals
• Lightweight at 0.41 pounds for easy handling and overhead installation

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 CPVC piping systems using 1-1/2 inch nominal pipe with male iron pipe thread terminations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and ASTM standards for CPVC threaded fittings. Shut off and depressurize the pipe system completely before removing any existing fittings or installing this cap. Use PTFE thread tape or an approved thread sealant rated for CPVC on all FIPT connections. Do not use petroleum-based sealants or cements not rated for CPVC, as they can degrade the fitting material.
