Value Collection 847-0187 Square End Mill 3/16in 4 Flute Hss

Product Description

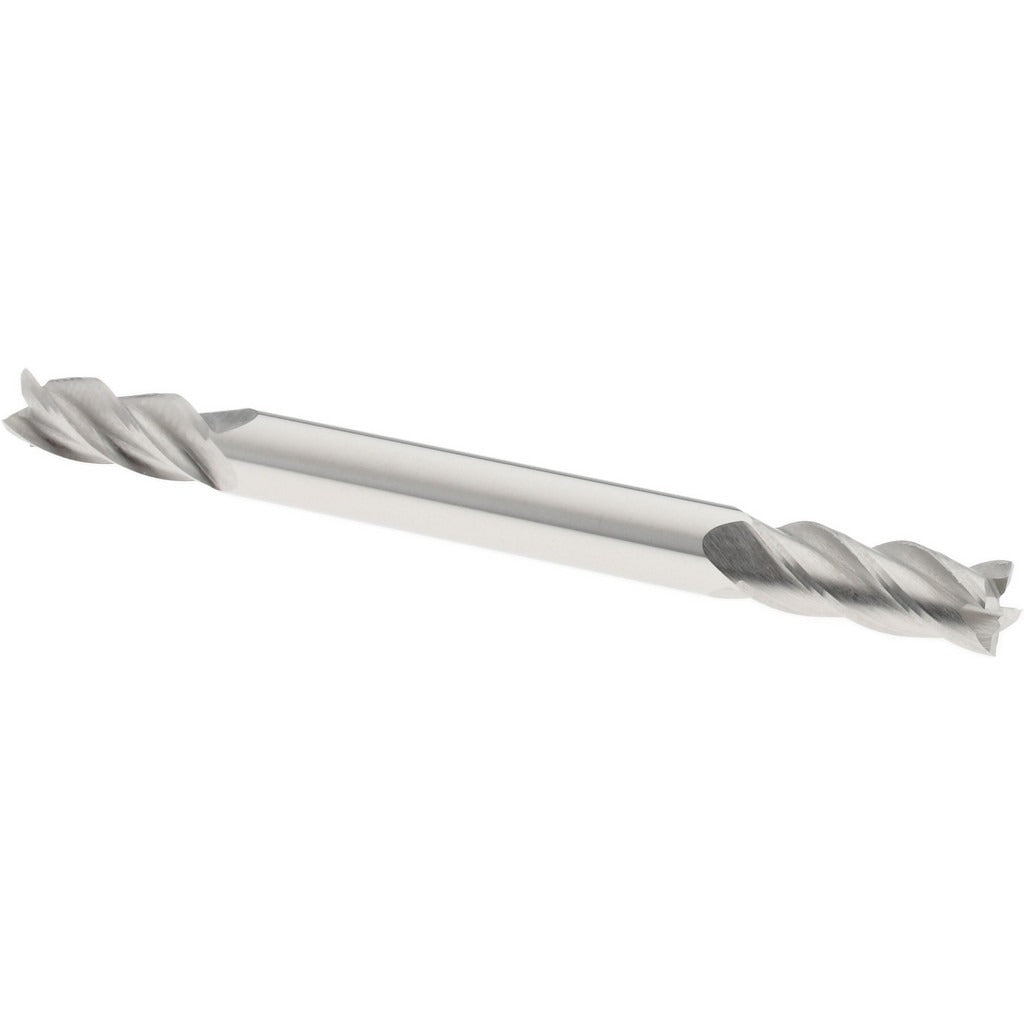

The VALUE COLLECTION 847-0187 is a double-end, four-flute square end mill designed for general-purpose milling operations in machine shops and manufacturing environments. Manufactured from high speed steel (HSS), it measures 3/16 inches in diameter with a 1/2-inch length of cut and a 2-1/4-inch overall length. The bright, uncoated finish is standard for HSS tooling used across a wide range of ferrous and non-ferrous workpiece materials. A 30-degree helix angle and right-hand cutting direction support efficient chip evacuation during peripheral and slot milling. This tool is installed and operated by machinists and CNC setup technicians.

This end mill is suited for light to medium milling work including slotting, profiling, and contouring on manual mills and CNC machining centers. Its double-end design provides two usable cutting ends, extending tool life between replacements. The 3/16-inch straight shank fits standard collets and end mill holders used in typical machining setups. The Series 847 regular-length geometry fits production and toolroom applications where a compact, fractional-inch tool is required.

Key Features

• Double-end design with two usable cutting ends for extended tool life
• 4-flute configuration for improved surface finish on ferrous materials
• 30-degree helix angle promotes efficient chip evacuation
• Right-hand cut and right-hand flute spiral for standard spindle use
• Bright/uncoated HSS construction suitable for a broad range of materials
• Straight shank fits standard collets and end mill holders

Compatibility

Designed as a standard fractional-inch replacement end mill for use in manual mills and CNC machining centers accepting a 3/16-inch straight shank collet or end mill holder.

Installation Notes

Installation should be performed by a qualified machinist with the spindle fully powered off and locked out before tooling changes. Seat the straight shank fully into the collet or holder and torque the retention hardware per the machine manufacturer's specifications. Confirm runout with a dial indicator before beginning a cut. Do not exceed the rated depth of cut for the tool diameter to avoid deflection or breakage.
