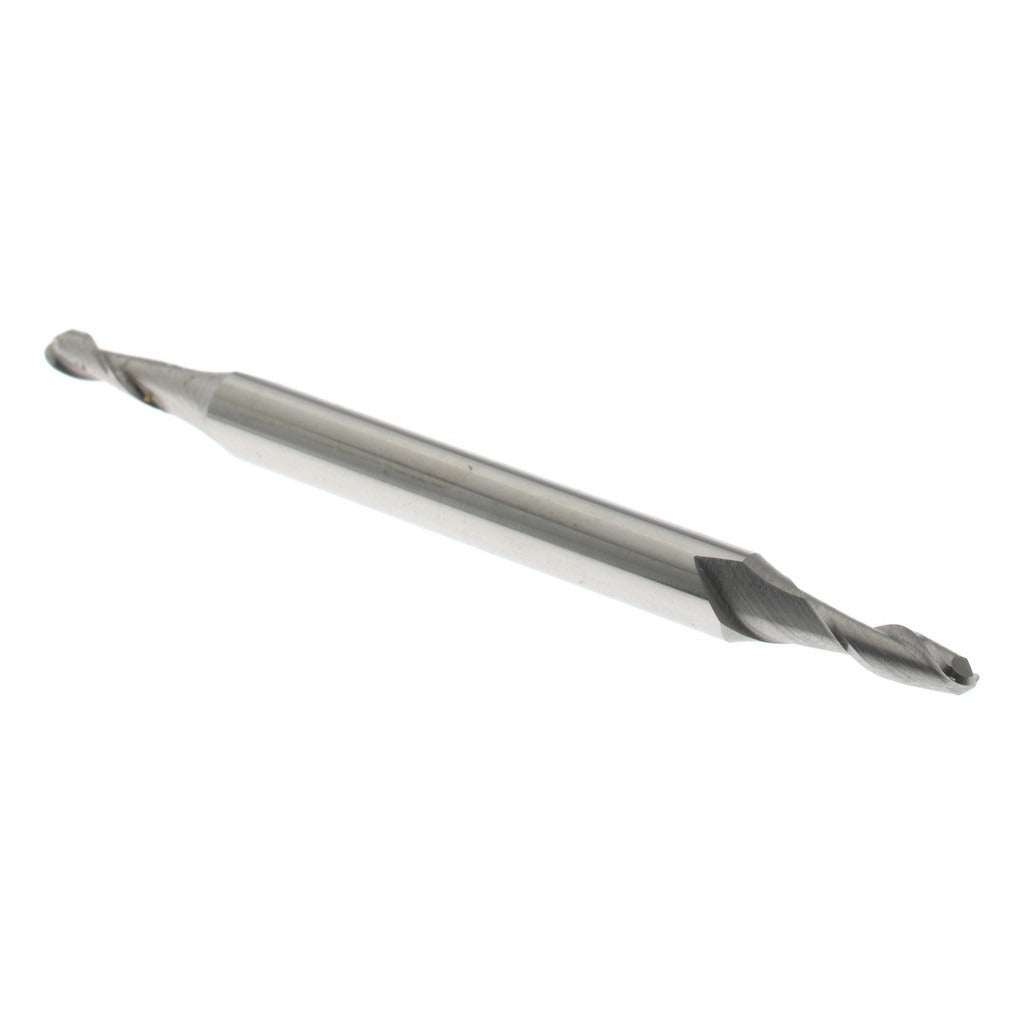

Value Collection 841-0109 Ball End Mill 2 Flute Hss

Product Description

The VALUE COLLECTION 841-0109 is a double-end ball end mill designed for milling curved profiles, contoured surfaces, and slot work requiring a full-radius cutting edge. Built from high speed steel, this tool delivers reliable performance in a wide range of common shop metals and plastics. The cutting diameter is 0.1094 inches (7/64 inches) with a length of cut of 0.3281 inches (21/64 inches). The double-end configuration doubles usable tool life before replacement, making it a practical choice for production and maintenance machinists alike.

This end mill is suited for CNC machining centers, manual knee mills, and toolroom applications where small-diameter ball end geometry is required. The 0.1094 inch diameter makes it appropriate for fine detail work, small pockets, and blending operations on molds, dies, and fixture components. Its right-hand cut and right-hand flute direction are compatible with standard spindle rotation on most vertical milling machines. Installation requires a collet or end mill holder sized for a 3/16 inch shank diameter.

Key Features

• Double-end design provides two usable cutting ends for extended tool life
• High speed steel construction suitable for ferrous and non-ferrous materials
• Ball nose geometry ideal for 3D contour milling and profile blending
• Right-hand cut and right-hand flute direction for standard spindle compatibility
• Regular length classification for balanced rigidity and reach in typical setups

Compatibility

Designed for use in collet chucks or end mill holders with a 3/16 inch bore, compatible with standard vertical milling machines and CNC machining centers accepting right-hand rotation tooling.

Installation Notes

This tool is installed by a machinist or toolroom technician using a properly sized collet or set-screw end mill holder. Ensure the machine spindle is fully stopped and locked before changing tooling. Verify collet bore matches the 3/16 inch shank diameter to prevent runout. Follow shop-standard clamping procedures and consult manufacturer feeds-and-speeds guidelines for the workpiece material before cutting.
