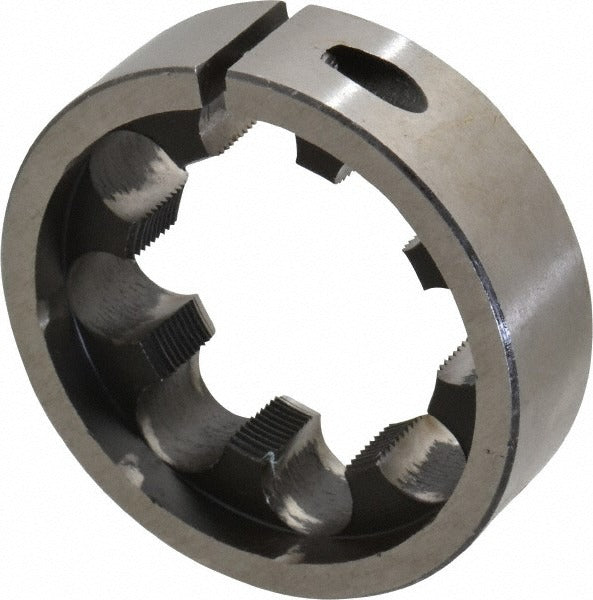

Value Collection 84047264 Round Die 1-1/2-24 Uns Hss

Product Description

The VALUE COLLECTION 84047264 is a round threading die designed to cut external threads on rod, bolt stock, and cylindrical workpieces. Sized for a 1-1/2-24 thread form to the UNS (Unified National Special) standard, this die is manufactured from high-speed steel for resistance to heat buildup during cutting operations. An adjustable design allows the operator to fine-tune thread fit by compressing or expanding the die within its holder. Right-hand thread direction means the die cuts standard fastener threads as the tool advances clockwise into the workpiece. Machinists, pipefitters, and maintenance technicians use this type of die for both production threading and field repair work.

This die is suited for threading mild steel, stainless, aluminum, brass, and similar machinable materials where a 1-1/2-24 UNS thread form is specified. Typical applications include repair of damaged threads on shafts and hydraulic fittings, custom fastener fabrication, and toolroom work. The die fits standard round die stocks sized for 1-1/2 inch outside diameter dies. It is packaged as a single unit, making it appropriate for low-volume or one-off threading jobs as well as addition to a shop die set.

Key Features

• 1-1/2-24 UNS thread form for specialized pitch applications outside standard UNC and UNF series
• High-speed steel construction resists heat and wear during continuous cutting
• Adjustable die body allows thread fit tuning without changing tooling
• Right-hand thread direction cuts standard clockwise-advance threads
• Compatible with standard round die stocks sized for 1-1/2 inch diameter dies
• Single-piece packaging suitable for individual replacement or toolroom restocking

Compatibility

Designed for use in standard round die stocks accepting a 1-1/2 inch outside diameter adjustable round die. Verify die stock size and thread specification before installation.

Installation Notes

Round threading dies are installed and operated by qualified machinists or maintenance technicians familiar with hand and machine threading procedures. Secure the workpiece firmly in a vise before applying the die stock to prevent rotation or slippage. Apply an appropriate cutting fluid to the workpiece and die before and during cutting to reduce heat, extend die life, and improve thread finish. Inspect the die for chips or damage before each use and do not force a damaged die.
