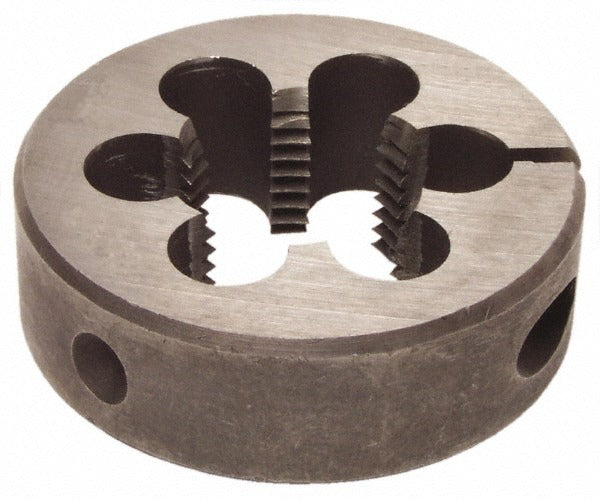

Value Collection 84035486 Round Threading Die 1-9/16-12

Product Description

The VALUE COLLECTION 84035486 is a round threading die sized 1-9/16-12, designed for cutting external threads on round stock in machine shop, maintenance, and fabrication environments. Manufactured from high-speed steel (HSS), this die delivers the hardness and heat resistance required for threading steel, stainless, and other ferrous materials at production feed rates. The 3 inch outside diameter fits standard round die stocks of the same OD. The right-hand thread configuration follows conventional threading direction. An adjustable design allows the technician to fine-tune thread fit by slightly expanding or compressing the die body using the adjustment screw on a compatible die stock.

This die is suited for job shops, maintenance and repair operations, toolrooms, and field fabrication work wherever a 1-9/16-12 UNF external thread must be cut or chased. Typical applications include rethreading damaged fasteners, threading hydraulic fittings, industrial shafting, and custom threaded components. It is used by machinists, pipefitters, and millwrights working on both bench-mounted and hand-held die stock setups. The 3 inch OD is a common size stocked in most industrial toolrooms.

Key Features

• 1-9/16-12 thread size for cutting standard UNF external threads
• 3 inch outside diameter fits compatible round die stocks
• High-speed steel construction for hardness and heat resistance during cutting
• Right-hand thread direction matches conventional fastener standards
• Adjustable body allows fine-tuning of thread fit and cutting depth

Compatibility

Designed for use with round die stocks that accept a 3 inch OD round die. Fits standard bench-type and adjustable hand die stock holders of matching OD.

Installation Notes

Round dies are installed and used by machinists or experienced tradespeople familiar with threading operations. Secure the die firmly in a compatible die stock before use and ensure the workpiece is properly chamfered to aid thread starting. Apply cutting fluid appropriate for the workpiece material throughout the threading operation to reduce heat and extend die life. Inspect the die for wear or chipping before each use and replace if thread quality is compromised.
