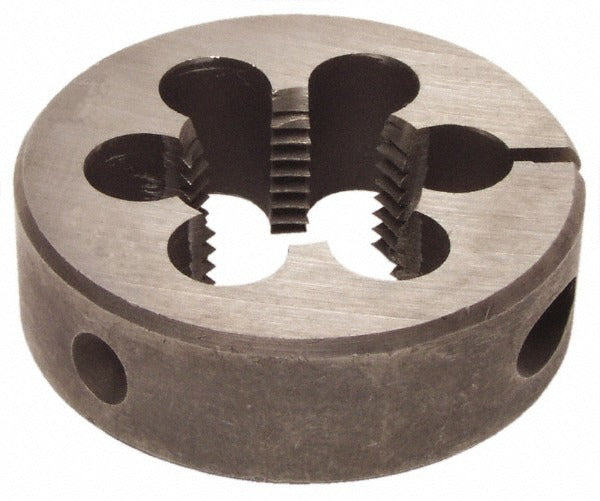

Value Collection 84025807 Round Die 5-80 High Speed Steel

Product Description

The VALUE COLLECTION 84025807 is a round threading die sized for 5-80 unified fine thread, manufactured from high-speed steel for durability under repeated use. It cuts right-hand external threads and features an adjustable design that allows the operator to fine-tune the thread fit and cutting depth. This die is used by machinists, tool and die technicians, and maintenance professionals working on small-diameter fastener applications. At 0.5 pounds, it is a compact, single-piece tool suited for bench work and field repair tasks requiring precise thread forming on inch-series fasteners.

This die is intended for cutting 5-80 external threads on ferrous and non-ferrous materials in precision machining, maintenance, and repair operations. The 5-80 thread designation refers to a No. 5 screw diameter with 80 threads per inch, a fine-pitch specification common in instrumentation, small assemblies, and electronics hardware. It is appropriate for both production threading and one-off repair work in machine shops, maintenance facilities, and toolrooms.

Key Features

• 5-80 unified fine thread size for small-diameter, high-thread-count applications
• High-speed steel construction provides hardness and heat resistance during cutting
• Adjustable design allows thread fit and cutting depth fine-tuning
• Right-hand thread direction matches standard fastener orientation
• Compact and lightweight at 0.5 pounds for easy handling at the bench or in the field

Compatibility

Designed as a standard round die for use with a matching die stock or die holder sized to fit the die outside diameter. Suitable for cutting 5-80 right-hand external threads on inch-series workpieces in general machining and repair applications.

Installation Notes

This die is installed into a die stock or appropriate holder before use. Secure the die firmly in the holder and apply cutting fluid to the workpiece before threading to improve cut quality and extend tool life. Ensure the workpiece is held securely in a vise or fixture and that the die is started square to the work axis to prevent cross-threading. Always wear appropriate eye protection when performing threading operations.
