Value Collection 838 00096 Wire Rope Compression Sleeve

Product Description

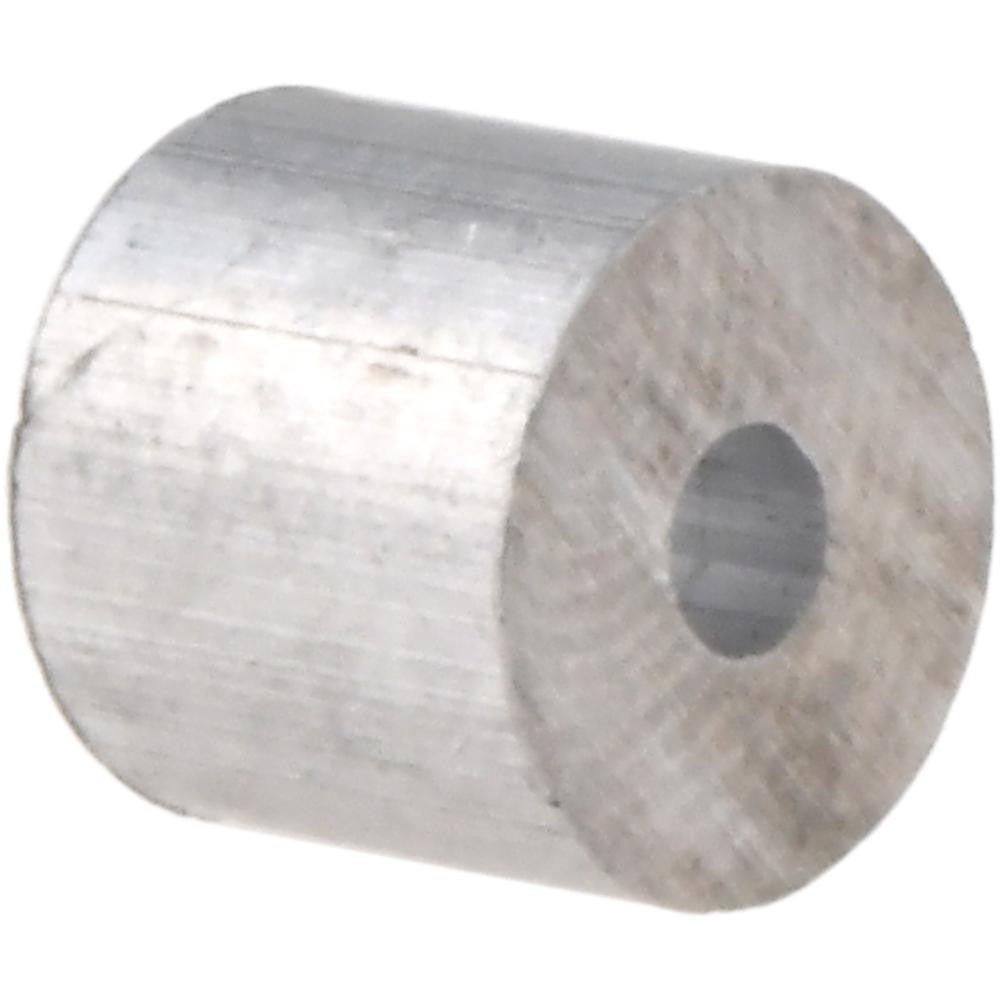

The VALUE COLLECTION 838 00096 is an aluminum round stop compression sleeve designed for use with 3/32 inch diameter wire rope. This fitting swages or presses onto the rope end to form a secure, compact stop that prevents the rope from pulling through a fitting, anchor, or bracket. Lightweight and corrosion-resistant, aluminum construction makes this sleeve well suited for light-duty rigging, cable assemblies, and general wire rope termination work. Installers in rigging, marine, general construction, and industrial maintenance trades use this type of sleeve where a low-profile, permanent rope stop is required.

This compression sleeve is sized specifically for 3/32 inch wire rope and is used wherever a round stop termination is needed. Typical applications include guy wire anchoring, light lifting assemblies, cable railings, curtain and display rigging, tool lanyards, and light mechanical cable runs. The round stop profile keeps the sleeve compact and reduces snagging risk in confined channels or guides. Sold individually, this sleeve is intended for use with a swaging tool appropriate for aluminum fittings and 3/32 inch rope diameter.

Key Features

• Sized for 3/32 inch wire rope diameter for a secure, consistent fit
• Aluminum construction provides corrosion resistance and low weight
• Round stop profile creates a compact termination that resists pull-through
• Compatible with standard swaging tools for aluminum sleeves in this size range
• Lightweight at 0.003 pounds per unit, suitable for high-quantity rigging jobs

Compatibility

Designed as an OEM-style replacement or standard component for wire rope assemblies requiring a 3/32 inch round stop compression sleeve in aluminum.

Installation Notes

Installation requires a hand or bench swaging tool rated for 3/32 inch aluminum compression sleeves. Ensure the wire rope is cut cleanly and the sleeve is fully seated before applying compression. Inspect the swaged sleeve for cracks or deformation after crimping, as aluminum fittings should not be reused once swaged. Follow applicable ASME or OSHA rigging guidelines for the specific application and load rating requirements.
