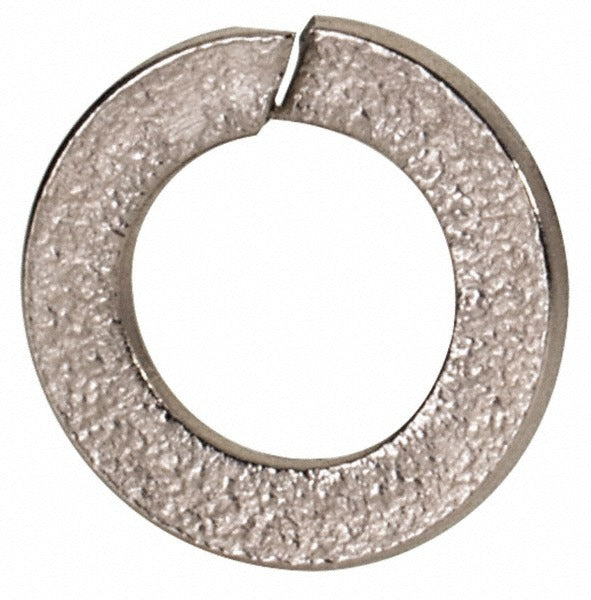

Value Collection 836033PS M3.5 Metric Split Lock Washer

Product Description

The VALUE COLLECTION 836033PS is an M3.5 metric split lock washer made from 18-8 austenitic Grade A2 stainless steel with a bright, uncoated finish. Designed to prevent fastener loosening caused by vibration or dynamic loading, it seats between the fastener head or nut and the mating surface to maintain clamp load. The washer measures 3.6 mm minimum inside diameter with a 3.9 mm maximum inside diameter, a 6.7 mm outside diameter, and a 0.8 mm thickness. Manufactured to DIN 127 standards, this washer is well suited for metric fastening applications where corrosion resistance is a priority. Installation and maintenance technicians working with M3.5 screws across a range of trade and light industrial settings will find this a direct fit.

This split lock washer is intended for use with M3.5 screws in metric fastening assemblies across residential, commercial, and light industrial environments. Typical applications include equipment panels, enclosures, and mechanical assemblies where stainless steel corrosion resistance is required. The DIN 127 fastener standard ensures dimensional consistency for reliable performance in a wide range of metric hardware configurations. Minimum order quantity is 100 pieces, sold as a package quantity of 1.

Key Features

• 18-8 austenitic Grade A2 stainless steel construction for corrosion resistance in wet or outdoor environments
• Meets DIN 127 fastener standard for dimensional accuracy and consistent fitment
• Split lock design resists loosening under vibration and dynamic loads
• Bright uncoated finish with no added coating that could affect dimensional tolerances
• Inside diameter range of 3.6 mm to 3.9 mm accommodates M3.5 screw shank fitment
• Minimum order quantity of 100 units supports volume fastening work

Compatibility

Designed for use with M3.5 metric screws in applications conforming to DIN 127 split lock washer specifications.

Installation Notes

Install this washer between the fastener head or nut and the mating surface before final torque is applied. Ensure the mating surface is clean and free of debris to allow the split ends to seat properly and maintain clamping force. No special tools are required beyond standard hand or power drivers appropriate for M3.5 fasteners. Stainless steel fasteners are susceptible to galling during installation; use proper lubrication or anti-seize when required by the application.
