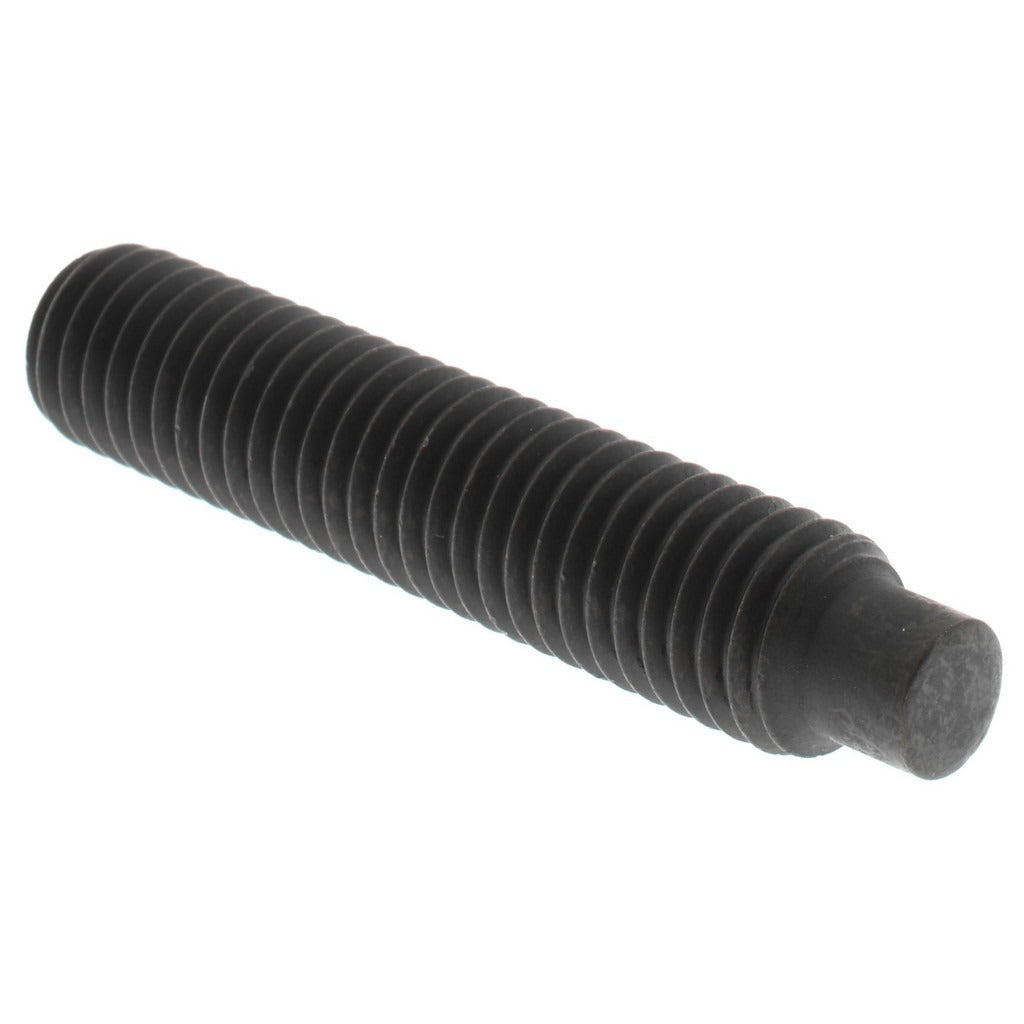

Value Collection 833154PR M10 X 1.50 X 35mm Dog Point Set Screw

Product Description

The VALUE COLLECTION 833154PR is a metric dog point set screw designed for precision positioning and locking applications in mechanical assemblies. It features an M10 x 1.50 thread with a 35 mm overall length, manufactured from alloy steel to Grade 14.9 (45H) for high tensile and torsional strength. The black oxide finish provides a baseline level of corrosion resistance and reduces light reflection in service environments. The dog point tip extends beyond the threads, locating into a drilled hole or slot on the mating component to prevent rotational or axial movement without surface damage. This fastener is driven with a 5 mm hex key and conforms to DIN 915 and ISO 4028 standards. Machinists, toolmakers, and maintenance technicians working with precision shafting, fixtures, and industrial equipment install this type of fastener routinely.

This set screw is suited for use in machine tool components, shaft-collar assemblies, fixture plates, and mechanical drives where positive location of a shaft or component is required. The dog point profile is preferred over cup or cone points when the mating surface must remain undamaged or when repeated removal and reinstallation is expected. Applications span general manufacturing, toolroom work, and maintenance of rotating equipment across industrial settings. Minimum order quantity is 10 pieces per order.

Key Features

• M10 x 1.50 metric thread, 35 mm overall length for deep engagement in thick bosses or collars
• Dog point tip locates into a mating hole or slot for positive positioning without shaft marring
• Alloy steel Grade 14.9 (45H) construction provides high clamping and torsional load capacity
• Black oxide finish for mild corrosion resistance and low-reflectivity appearance
• 5 mm hex drive for standard hex key installation and removal
• Conforms to DIN 915 and ISO 4028 dimensional standards for interchangeability

Compatibility

Designed as a standard DIN 915 and ISO 4028 metric dog point set screw for use in any M10 x 1.50 threaded bore requiring dog point engagement.

Installation Notes

Installation is performed by machinists or maintenance technicians using a 5 mm hex key. Ensure the mating component has a properly sized and located pilot hole or slot to accept the dog point before applying torque. De-energize, lock out, and tag out any equipment before installing or removing set screws from rotating shafts or power-transmission components. Avoid over-driving, which can strip threads or deform the dog point; consult applicable engineering standards for torque guidance appropriate to Grade 14.9 fasteners of this size.
