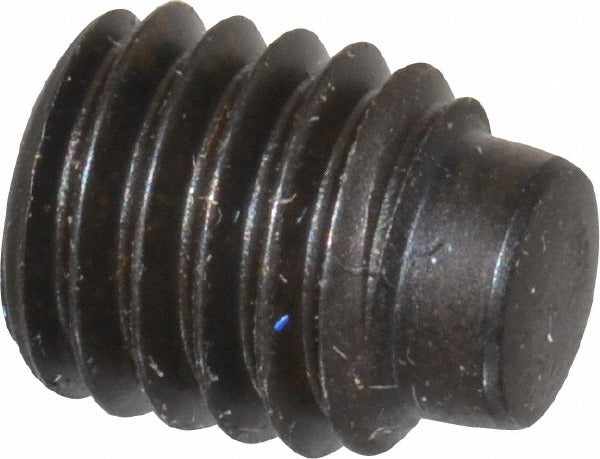

Value Collection 833106PR Set Screw M8x1.25x10mm Dog Point

Product Description

The VALUE COLLECTION 833106PR is an M8 x 1.25 metric set screw with a 10 mm overall length, dog point tip, and hex drive. Made from alloy steel at material grade 14.9 (45H), it delivers high clamping strength for demanding industrial and mechanical fastening applications. The black oxide finish provides moderate corrosion resistance and reduces light reflection on finished assemblies. A 4 mm hex key drives the fastener, and the dog point tip locates precisely into a mating hole or groove to prevent shaft rotation. This fastener meets DIN 915 and ISO 4028 standards, making it a reliable choice for engineers and maintenance technicians working to metric specifications.

This set screw is suited for mechanical assemblies where a shaft, collar, gear, pulley, or similar component must be locked to a shaft without a protruding head. The dog point seats into a corresponding indent or locating hole on the shaft, providing positive anti-rotation retention. Typical applications include power transmission components, fixture tooling, machine tool setups, and precision assembly work in manufacturing environments. Installation is performed by machinists, millwrights, and maintenance technicians. This SKU ships in a package quantity of 1 with a minimum order quantity of 100 pieces.

Key Features

• M8 x 1.25 metric thread with 10 mm overall length
• Dog point tip for positive shaft location and anti-rotation retention
• Alloy steel construction, grade 14.9 (45H) for high tensile and torsional strength
• Black oxide finish for mild corrosion resistance and reduced surface glare
• Hex drive requires 4 mm hex key for installation and removal
• Meets DIN 915 and ISO 4028 fastener standards

Compatibility

Designed as an OEM-style metric set screw for use in any M8 x 1.25 tapped hole requiring a dog point, headless fastener per DIN 915 or ISO 4028 specifications.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a calibrated 4 mm hex key or hex driver. Ensure the mating tapped hole is clean and free of debris before driving the screw. Verify the dog point aligns with the locating hole or flat on the shaft before applying final torque. Follow applicable machinery safety lockout and tagout procedures before servicing any rotating assembly.
