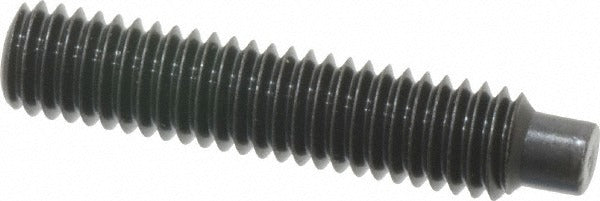

Value Collection 833084PR Set Screw M6x1 30mm Dog Point

Product Description

The VALUE COLLECTION 833084PR is an M6 x 1.00 x 30 mm dog point set screw manufactured from alloy steel to Grade 14.9 (45H). It features a hex drive socket sized at 3.00 mm and a black oxide finish for corrosion resistance. The dog point extends beyond the screw body to locate into a mating hole or recess, providing positive positioning and preventing lateral movement of the clamped component. This fastener is dimensioned to overall length and conforms to DIN 915 and ISO 4028 standards. It is installed by machinists, maintenance technicians, and mechanical assemblers working with metric fastener systems.

This set screw is suited for industrial and mechanical assembly applications where a dog point is required to seat into a locating hole on a shaft, collar, or similar component. Typical uses include shaft collars, shaft couplings, pulleys, gears, and precision positioning fixtures. The M6 x 1.00 thread size and 30 mm overall length make it appropriate for light-to-medium duty clamping and positioning tasks in production and maintenance environments. The black oxide finish is appropriate for indoor and light-duty applications where minimal surface corrosion protection is acceptable.

Key Features

• Dog point design seats into a locating hole for positive shaft or component positioning
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Black oxide finish provides light corrosion resistance and reduces light reflection
• Hex drive socket accepts a 3.00 mm hex key for installation in confined spaces
• Conforms to DIN 915 and ISO 4028 dimensional standards
• Metric thread M6 x 1.00 pitch for use in metric fastener systems

Compatibility

Designed as a metric set screw conforming to DIN 915 and ISO 4028 standards, suitable for use in any application requiring an M6 x 1.00 thread dog point set screw with a 3.00 mm hex drive.

Installation Notes

Installation requires a 3.00 mm hex key or hex bit driver. Ensure the mating component has a correctly sized and positioned locating hole to accept the dog point before tightening. De-energize and lock out any machinery before installing or removing set screws on rotating components. Do not exceed the torque capacity of the hex socket or the fastener grade when applying torque.
