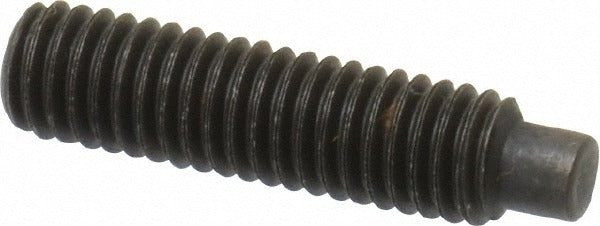

Value Collection 833082PR Set Screw M6x1 25mm Dog Point

Product Description

The VALUE COLLECTION 833082PR is a dog point set screw used to secure components onto shafts, spindles, or assemblies where a positive locating point is required. Manufactured from alloy steel to Grade 14.9 (45H), this fastener delivers high tensile strength suitable for demanding clamping and locking applications. A black oxide finish provides mild corrosion resistance and reduces light reflection on the fastener head. The hex drive accepts a 3.00 mm hex key and conforms to DIN 915 and ISO 4028 standards. It is installed by maintenance technicians and mechanical assemblers working with metric hardware.

This set screw is suited for general industrial, mechanical, and light manufacturing applications where a dog point style grub screw is specified. The dog point projects beyond the thread end, seating into a mating hole or groove in the shaft to resist rotation and axial movement. With a thread size of M6 x 1.00 and an overall length of 25 mm, it fits applications requiring a compact, high-strength metric fastener. The metric dimensioning aligns with DIN and ISO fastener specifications common in European and internationally standardized equipment.

Key Features

• Dog point tip seats into a shaft hole or groove to prevent rotation and axial shift
• Alloy steel construction rated to Grade 14.9 (45H) for high clamping force
• Black oxide finish for mild corrosion resistance and reduced surface reflection
• 3.00 mm hex drive for standard hex key installation and removal
• Conforms to DIN 915 and ISO 4028 dimensional standards
• Metric thread M6 x 1.00 with 25 mm overall length for precise fitment

Compatibility

Designed as a direct-fit metric set screw for any threaded M6 x 1.00 bore requiring a dog point grub screw per DIN 915 or ISO 4028.

Installation Notes

Installation is performed with a 3.00 mm hex key; ensure the key is fully engaged before applying torque to avoid rounding the drive socket. The receiving shaft should have a pre-drilled mating hole or groove sized to accept the dog point for proper seating. De-energize and lock out all rotating machinery before servicing fasteners on live assemblies. Do not exceed the rated grade load for the fastener size when specifying preload.
