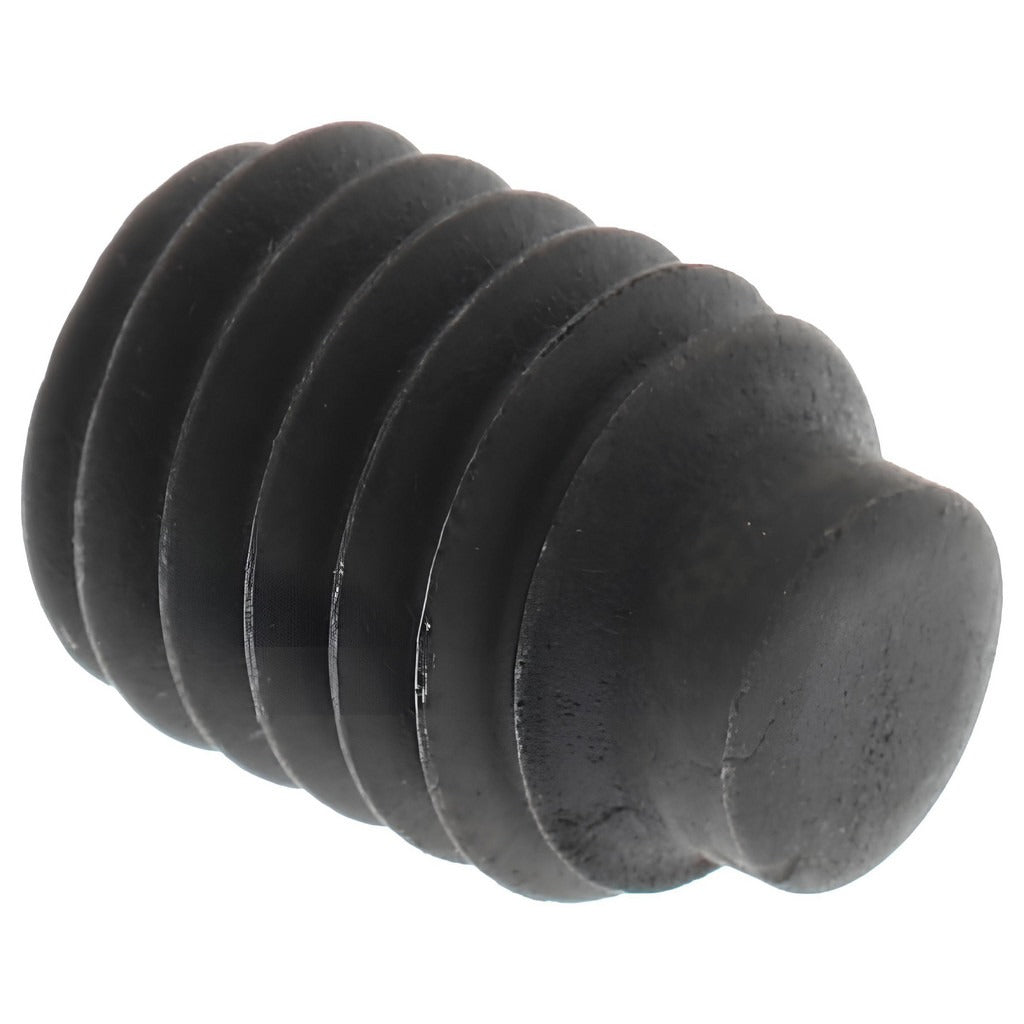

Value Collection 833072PR M6x1.00 8mm Dog Point Set Screw

Product Description

The VALUE COLLECTION 833072PR is an M6 x 1.00 x 8 mm dog point set screw manufactured from alloy steel to Grade 14.9 (45H). It features a hex drive socket sized at 3 mm and a black oxide finish that provides moderate corrosion resistance and reduced light reflection. The dog point tip extends beyond the thread end, allowing it to locate into a mating hole or groove to prevent rotational or axial movement of a shaft or collar. This screw is used by machinists, millwrights, and maintenance technicians in precision mechanical assemblies where positive part location is required.

Dog point set screws are a common choice in shaft-to-hub connections, shaft collars, indexing mechanisms, and light-duty positioning applications. The M6 x 1.00 thread is a standard metric pitch widely found in general industrial machinery, motion control hardware, and mechanical power transmission components. The 8 mm overall length suits thin-wall hubs and compact collar designs where a shorter grip length is required. These screws conform to DIN 915 and ISO 4028 dimensional standards.

Key Features

• Dog point tip seats into a mating hole or groove for positive shaft or collar location
• Grade 14.9 (45H) alloy steel construction for high torsional and compressive strength
• 3 mm hex key drive for precise torque application in tight clearance areas
• Black oxide finish reduces surface corrosion and minimizes light glare
• Conforms to DIN 915 and ISO 4028 dimensional standards for interchangeability
• Metric M6 x 1.00 thread pitch for compatibility with standard metric tapped holes

Compatibility

Designed as a standard DIN 915 and ISO 4028 metric set screw suitable for M6 x 1.00 tapped holes in shaft collars, hubs, and mechanical positioning assemblies requiring a dog point style fastener.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using a 3 mm hex key or hex bit driver. De-energize and lock out all rotating equipment before installing or removing set screws. Verify the mating dog point hole or groove depth and diameter match the point geometry before driving the screw to full engagement. Do not overtorque, as the small thread diameter and short length reduce cross-section area relative to larger fasteners.
