Value Collection 833031PR M4 Dog Point Set Screw Alloy Steel

Product Description

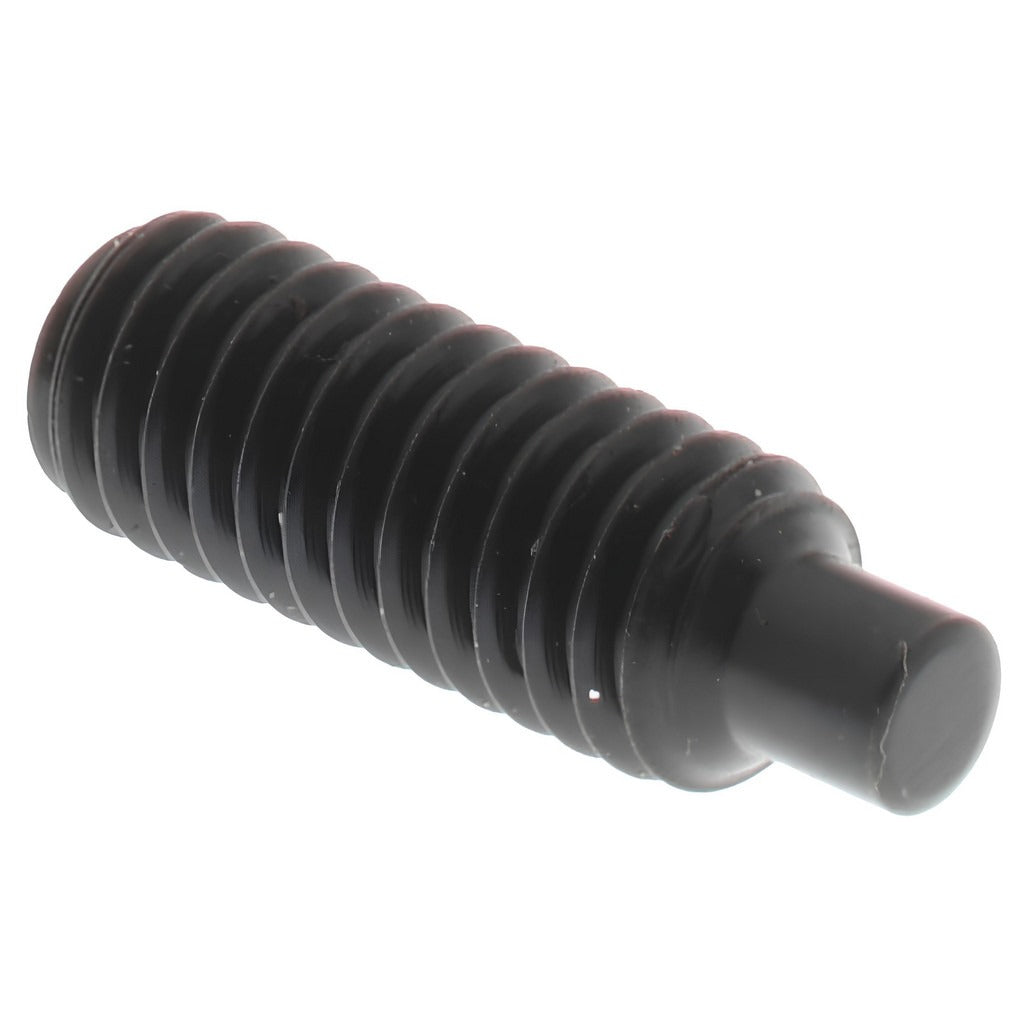

The VALUE COLLECTION 833031PR is an M4 x 0.70 x 6 mm dog point set screw manufactured from alloy steel to Grade 14.9 (45H). It features a 2 mm hex drive socket and a black oxide finish. The dog point nose extends beyond the end of the screw body, locating into a mating hole or groove in a shaft to resist rotational movement without damaging the shaft surface. This fastener is designed to DIN 915 and ISO 4028 standards and is sized using metric measurement. Machinists, millwrights, and assembly technicians working with shafting, collars, couplings, and similar components install this type of fastener routinely.

This set screw is suited for applications where a positive mechanical locating point is required between a hub or collar and a shaft. The dog point engages a corresponding dimple or slot, providing alignment and retention with minimal surface marring. Typical install scenarios include machine tool assemblies, conveyor components, motor shaft collars, and similar industrial or trade equipment requiring secure, repeatable positioning. The M4 x 0.70 thread pitch and 6 mm overall length target compact assemblies with limited engagement depth.

Key Features

• Dog point nose for positive shaft location in dimpled or slotted shafts
• Alloy steel construction rated to Grade 14.9 (45H) for high tensile and torsional strength
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• 2 mm hex key drive for precise torque application in tight spaces
• Conforms to DIN 915 and ISO 4028 dimensional standards
• Metric thread M4 x 0.70 with 6 mm overall length for compact assemblies

Compatibility

Designed as a metric dog point set screw conforming to DIN 915 and ISO 4028 standards, suitable for use in any application requiring an M4 x 0.70 threaded socket with a dog point nose.

Installation Notes

Install and remove using a 2 mm hex key. Ensure the mating shaft dimple or groove is aligned with the dog point before final seating to prevent thread galling or point damage. De-energize and lock out any rotating equipment before servicing fasteners on shafts or couplings. Follow applicable machinery safety standards and the equipment manufacturer's torque requirements for this thread size.
