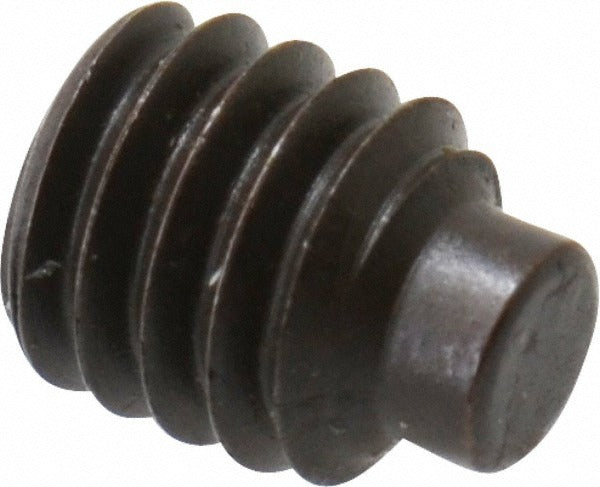

Value Collection 833030PR M4 X 0.70 X 5mm Dog Point Set Screw

Product Description

The VALUE COLLECTION 833030PR is a metric dog point set screw designed for precision clamping, positioning, and locking applications in mechanical assemblies. Manufactured from Grade 14.9 (45H) alloy steel with a black oxide finish, this fastener delivers high tensile strength and corrosion resistance suitable for demanding shop and field environments. The screw measures M4 x 0.70 thread pitch with a 5 mm overall length and is driven by a 2 mm hex key. It conforms to DIN 915 and ISO 4028 standards. Licensed tradespeople and machining professionals use this type of fastener when securing components to shafts or within bores where a projecting dog point is required for positive registration.

This set screw is suited for use in light machinery, precision positioning fixtures, and mechanical assemblies where metric fasteners are specified. The dog point provides a locating stub that seats into a mating hole or groove on a shaft, preventing rotation and axial movement. Its compact M4 size makes it appropriate for small-bore applications in manufacturing, maintenance, and repair settings. This package contains a quantity of 1 piece, with a minimum order quantity of 100 units.

Key Features

• Dog point tip seats into shaft holes or grooves for positive anti-rotation and axial retention
• Grade 14.9 (45H) alloy steel construction provides high tensile and proof load capacity
• Black oxide finish offers mild corrosion resistance and reduces light reflection in assemblies
• Conforms to DIN 915 and ISO 4028 fastener standards for dimensional consistency
• 2 mm hex key drive for precise torque application in confined spaces
• Metric thread M4 x 0.70 with 5 mm overall length for small-bore precision applications

Compatibility

Designed as a standard metric set screw conforming to DIN 915 and ISO 4028, suitable for threaded holes requiring an M4 x 0.70 dog point fastener in mechanical and industrial assemblies.

Installation Notes

Installation is performed by machinists and maintenance technicians using a 2 mm hex key. Ensure the mating threaded hole is clean and free of debris before driving the screw. De-energize and lock out any machinery before servicing fasteners within rotating or powered assemblies. Do not exceed the rated drive torque for M4 fasteners, and avoid over-tightening, which can cause thread stripping in the mating component.
