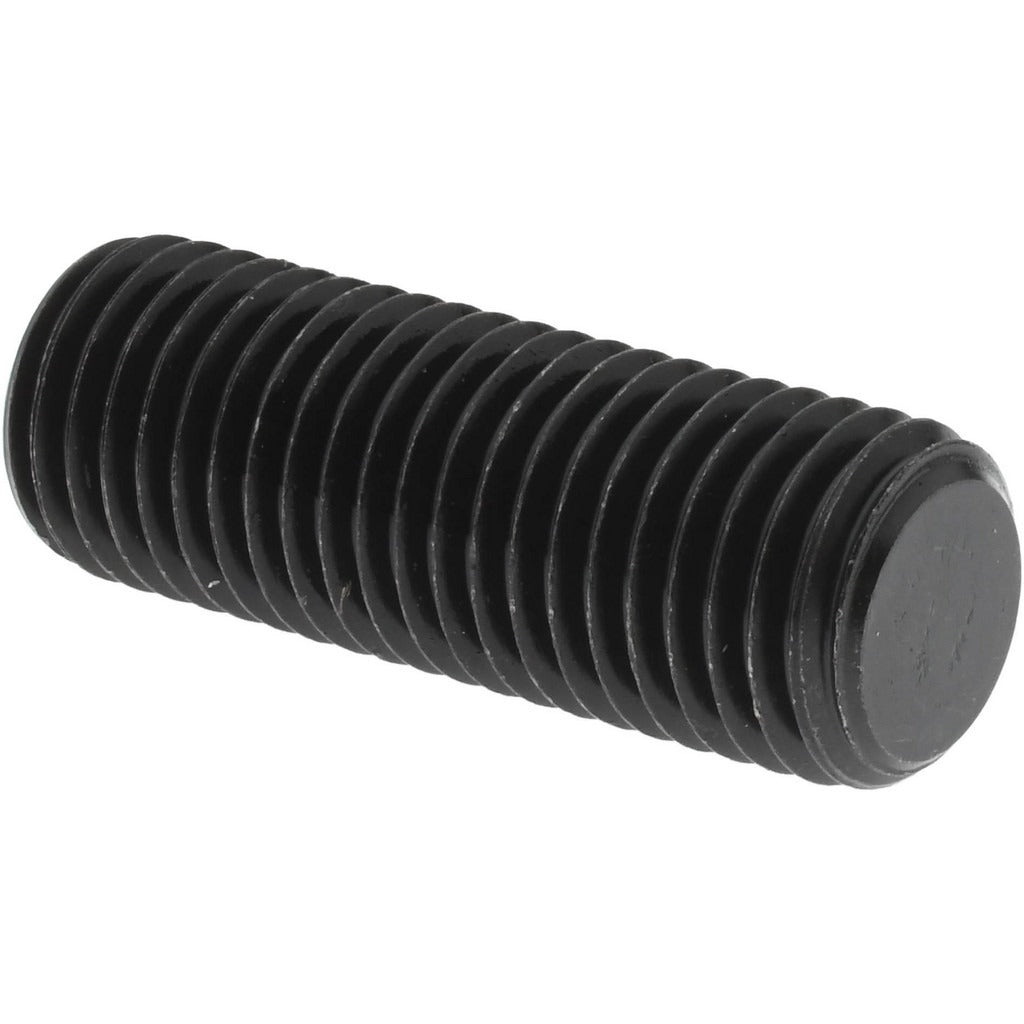

Value Collection 832320PS M16 X 2.00 X 45 Mm Set Screw

Product Description

The VALUE COLLECTION 832320PS is a metric hex-drive set screw designed for precision fastening applications in mechanical assemblies. It features an M16 x 2.00 thread with a 45 mm overall length and a flat point geometry, which distributes clamping load evenly against a shaft or seating surface without marring. The screw is manufactured from alloy steel to Grade 14.9 (45H) for high tensile strength under heavy preload conditions. A black oxide finish provides mild corrosion resistance and reduces surface galling during installation. This fastener conforms to DIN 913 and ISO 4026 standards and is driven with an 8 mm hex key.

This set screw is used in industrial and mechanical trade applications where a headless fastener is required to secure a hub, collar, gear, or pulley to a shaft. The flat point style is well suited for permanent or semi-permanent installations where shaft contact stress must be spread across a wider area. It is commonly specified by machinists, millwrights, and maintenance technicians working on rotating equipment, conveyor systems, machine tool components, and general power-transmission assemblies.

Key Features

• M16 x 2.00 metric thread with 45 mm overall length
• Flat point distributes clamping force without concentrating stress on the shaft
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Black oxide finish for mild corrosion resistance and reduced galling
• 8 mm hex key drive for positive torque engagement
• Conforms to DIN 913 and ISO 4026 fastener standards

Compatibility

Designed as a standard DIN 913 and ISO 4026 metric flat-point set screw for use in any M16 x 2.00 threaded bore requiring a headless, flush-seating fastener.

Installation Notes

Installation is typically performed by a machinist or mechanical technician using an 8 mm hex key or Allen driver. De-energize and lock out any rotating equipment before installing or removing set screws in drive components. Ensure the threaded bore is clean and free of debris before engagement, and verify thread fit before applying final torque. Do not use impact drivers on set screws, as this can damage the hex socket or strip the threads.
