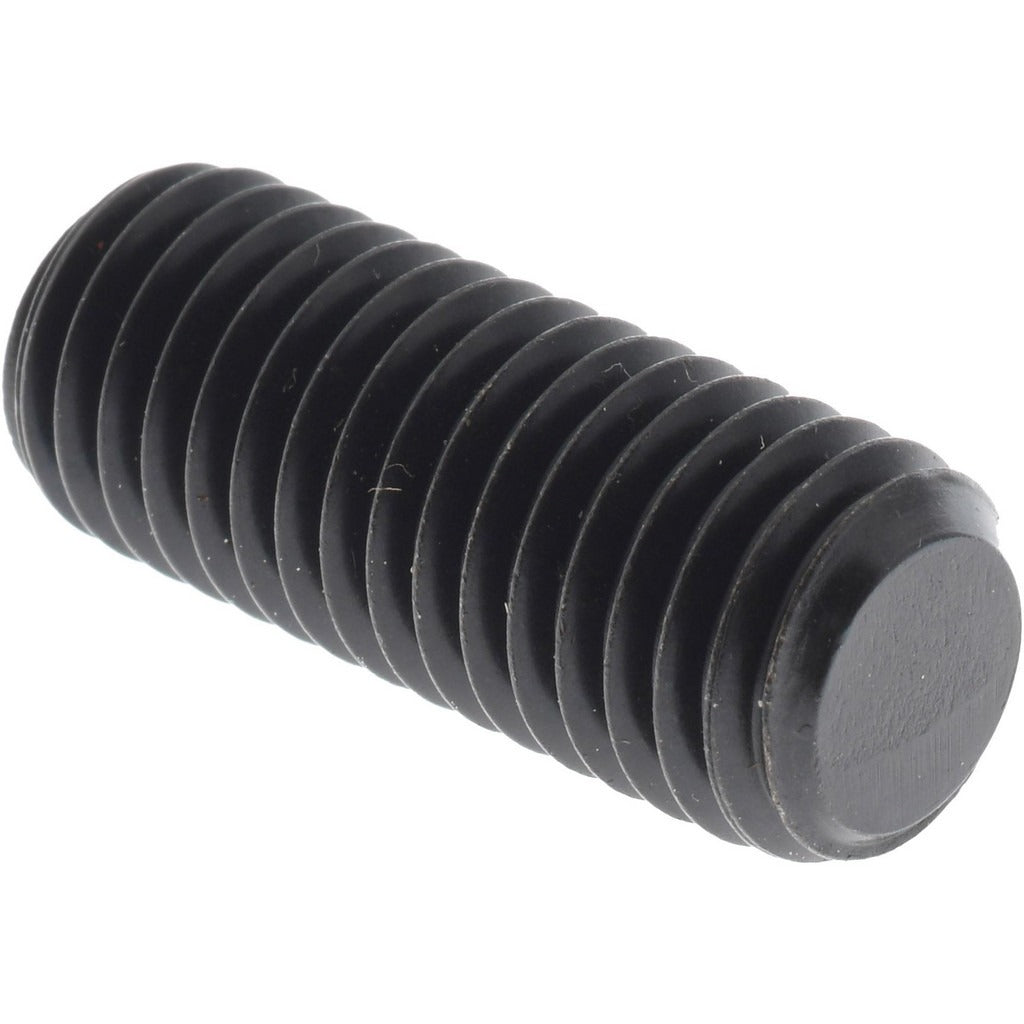

Value Collection 832196PS M12 X 1.75 X 30mm Flat Point Set Screw

Product Description

The VALUE COLLECTION 832196PS is an M12 x 1.75 x 30 mm flat point set screw manufactured from Grade 14.9 (45H) alloy steel with a black oxide finish. Set screws of this type are headless fasteners used to secure a component — such as a gear, pulley, or collar — against a shaft or within a bore by applying direct clamping force at the point of contact. The flat point style distributes load across a broad contact area, minimizing shaft damage compared to cone or cup point alternatives. The hex drive socket accepts a 6 mm hex key for installation. This fastener conforms to DIN 913 and ISO 4026 dimensional and mechanical standards.

This set screw is suited for industrial, mechanical, and maintenance applications where a metric fastener with high tensile strength is required. Grade 14.9 (45H) alloy steel provides elevated proof load and hardness, making it appropriate for high-torque or vibration-prone assemblies. Typical applications include machine tool components, power transmission assemblies, and general industrial fabrication. Installation is performed by licensed machinists, millwrights, or maintenance technicians using a 6 mm hex key or allen driver. This is a metric fastener with an overall length measurement of 30 mm and a thread pitch of 1.75 mm.

Key Features

• M12 x 1.75 thread size with 30 mm overall length for deep engagement in metric assemblies
• Flat point design reduces shaft marking and distributes clamping force evenly
• Grade 14.9 (45H) alloy steel provides high proof load and hardness for demanding applications
• Black oxide finish offers mild corrosion resistance and reduces light reflection in service
• Hex socket drive accepts a 6 mm hex key for flush or recessed installation
• Conforms to DIN 913 and ISO 4026 standards for dimensional consistency

Compatibility

Designed as an OEM-style metric set screw replacement or new-installation fastener for industrial assemblies requiring a DIN 913 or ISO 4026 compliant M12 x 1.75 flat point set screw.

Installation Notes

Installation is typically performed by a machinist or maintenance technician using a 6 mm hex key rated for the torque requirements of the application. Ensure the mating threaded bore is clean and free of debris before driving the screw. Do not exceed the designed seating torque for the assembly, and verify thread engagement depth is sufficient for the clamping load required. Follow applicable facility or equipment safety lockout and tagout procedures before servicing any powered mechanical assembly.
