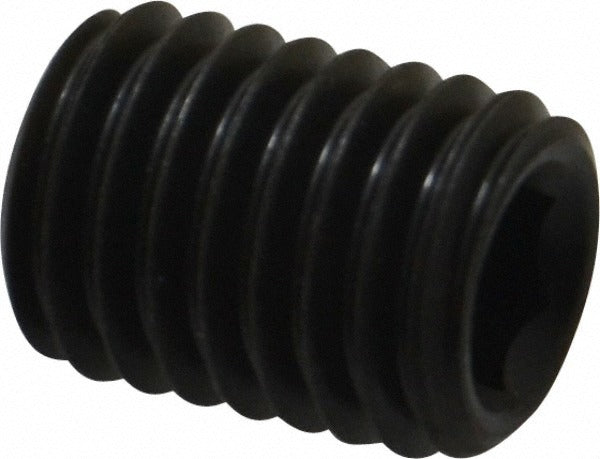

Value Collection 832190PR M12 Set Screw Flat Point Alloy Steel

Product Description

The VALUE COLLECTION 832190PR is an M12 x 1.75 x 16 mm flat point set screw manufactured from alloy steel to Grade 14.9 (45H). It features a 6 mm hex drive socket and a black oxide finish that provides mild corrosion resistance in protected environments. The flat point design distributes clamping force evenly against a shaft or mating surface without marring the contact area. Conforming to DIN 913 and ISO 4026 standards, this fastener is suited for use in mechanical assemblies, power transmission components, and machine tool applications where a headless, flush-mounted clamp is required. Installation is performed by machinists, millwrights, and maintenance technicians.

This set screw is used wherever a grub screw must lock a collar, gear, pulley, or hub to a shaft without protruding above the surface. The flat point makes it appropriate for applications requiring full-area contact against hardened or soft shaft surfaces. The metric M12 x 1.75 thread pitch and 16 mm overall length suit mid-range shaft diameters common in industrial machinery, conveyor systems, and general fabrication. Its alloy steel construction at Grade 14.9 delivers high tensile and torsional strength relative to standard grade fasteners.

Key Features

• M12 x 1.75 metric thread with 16 mm overall length
• Grade 14.9 (45H) alloy steel for high tensile and torsional strength
• Flat point geometry for even clamping without shaft damage
• 6 mm hex key drive for precise torque application in confined spaces
• Black oxide finish for mild corrosion resistance
• Conforms to DIN 913 and ISO 4026 fastener standards

Compatibility

Designed as a standard metric set screw conforming to DIN 913 and ISO 4026 for use in any mechanical assembly requiring an M12 x 1.75 flat point grub screw.

Installation Notes

Installation requires a 6 mm hex key or Allen driver rated for the torque demands of a Grade 14.9 fastener. Ensure the mating threaded hole is clean and free of debris before driving the screw. Power down and de-energize all rotating equipment before servicing shaft-mounted components. Follow applicable machinery safety standards and the equipment manufacturer's torque specifications for the assembly.
