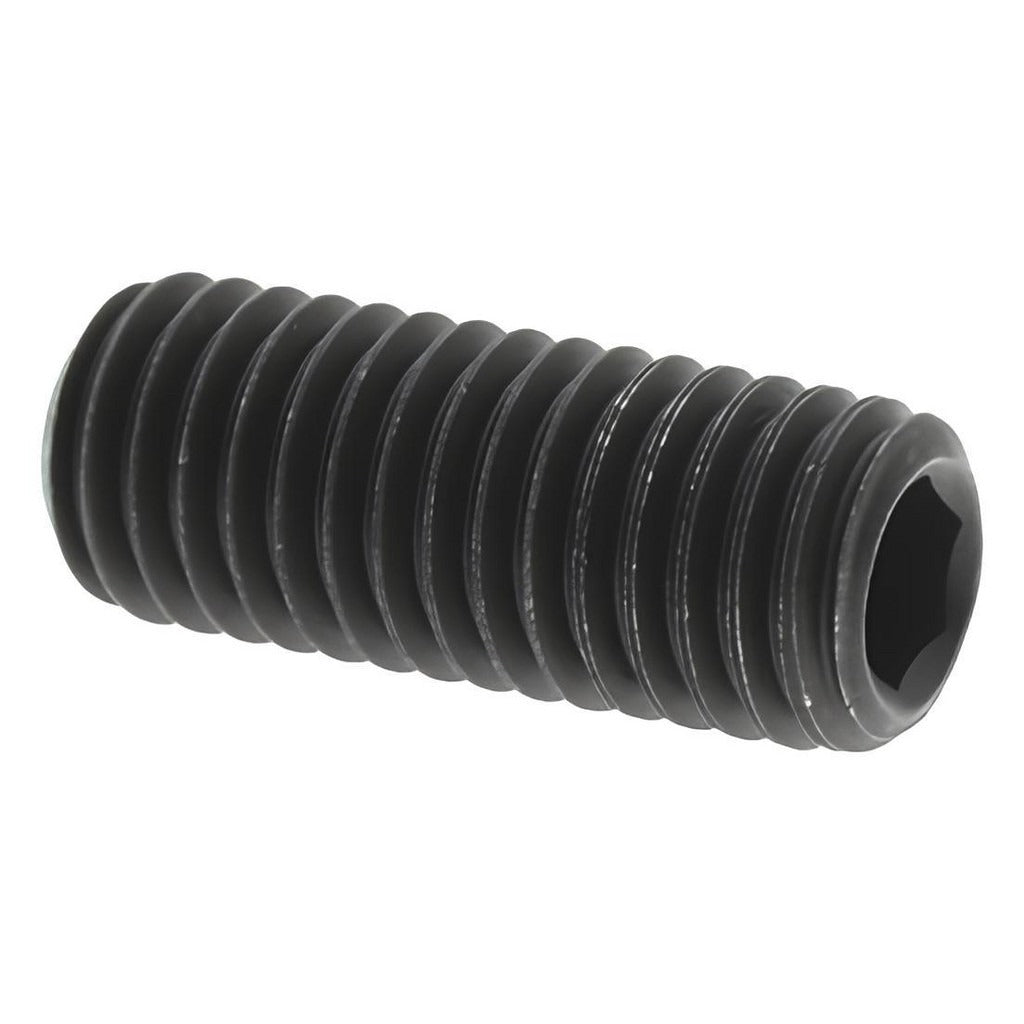

Value Collection 832150PS M10 Set Screw Flat Point Alloy Steel

Product Description

The VALUE COLLECTION 832150PS is an M10 x 1.50 x 25 mm flat point set screw manufactured from alloy steel at Grade 14.9 (45H), delivering high clamping force for demanding fastening applications. Driven by a 5 mm hex key, the flat point design distributes load across the mating surface without marring or deforming it. A black oxide finish provides mild corrosion resistance and reduces light reflection in assembled components. This fastener conforms to DIN 913 and ISO 4026 dimensional standards. Machinists, tool and die makers, maintenance technicians, and industrial assemblers install these screws where a headless, flush-mount threaded fastener is required to secure a component onto a shaft or within a threaded bore.

The 832150PS is suited for mechanical assemblies requiring precise axial or rotational locking without protruding hardware. Typical applications include securing collars, gears, pulleys, and bushings onto shafts in industrial machinery, conveyor systems, and precision equipment. The metric M10 x 1.50 thread pitch and 25 mm overall length make this screw a common fit in mid-size mechanical assemblies where inch-series hardware is not appropriate. Sold individually per package with a minimum order quantity of 50 pieces.

Key Features

• M10 x 1.50 metric thread, 25 mm overall length for consistent dimensional compliance
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Flat point design prevents shaft or bore damage during installation and under load
• 5 mm hex key drive for controlled torque application with standard tooling
• Black oxide finish provides mild corrosion resistance and a non-reflective appearance
• Manufactured to DIN 913 and ISO 4026 standards for interchangeability and dimensional accuracy

Compatibility

Designed as a DIN 913 and ISO 4026 compliant metric set screw suitable for use in any mechanical assembly requiring an M10 x 1.50 flat point headless fastener in alloy steel.

Installation Notes

Installation is performed by machining or maintenance technicians using a 5 mm hex key or Allen driver. Always de-energize and lock out machinery before installing or removing set screws in rotating components. Ensure the mating threaded bore is clean and free of debris before driving the screw to the specified engagement depth. Do not substitute a metric hex key with an inch-series equivalent, as improper fit can round the drive socket.
