Value Collection 832142PR M10 Set Screw Flat Point Alloy Steel

Product Description

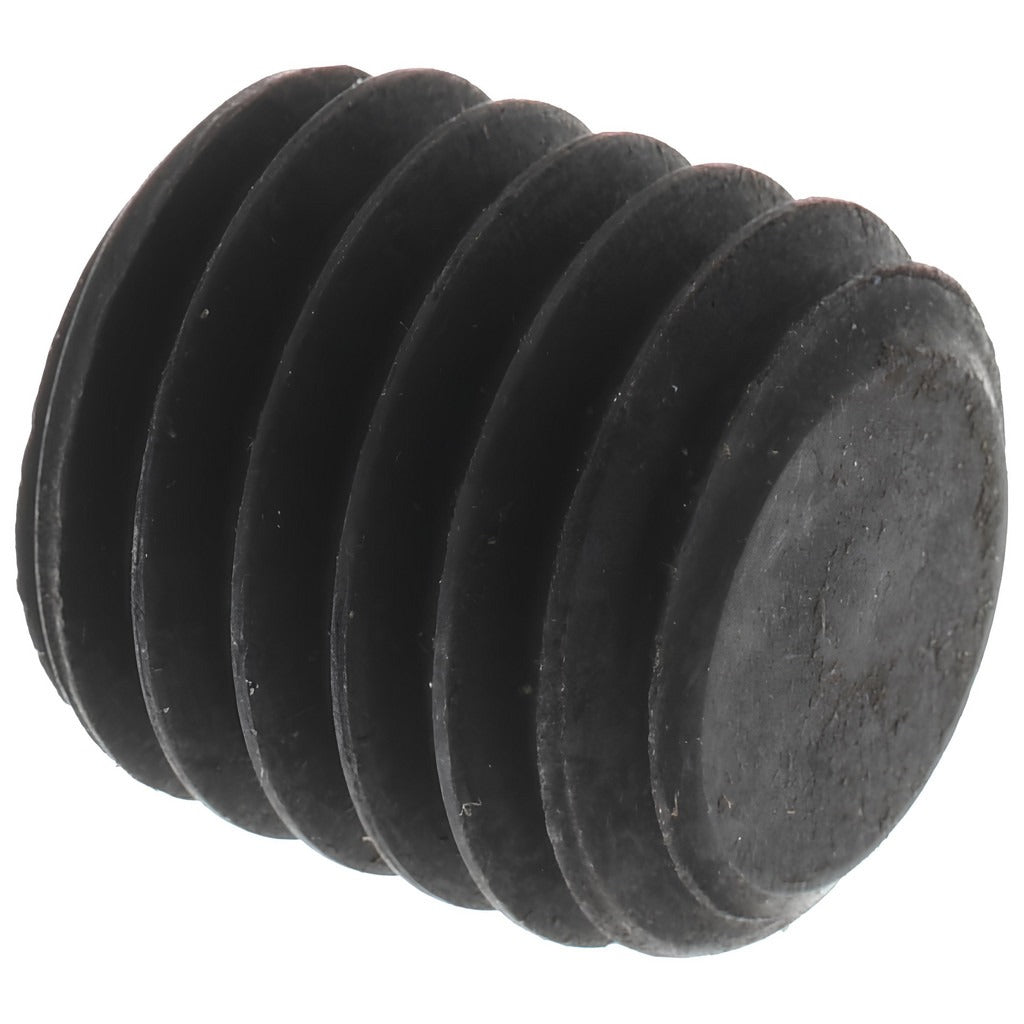

The VALUE COLLECTION 832142PR is an M10 x 1.50 x 10 mm flat point set screw made from alloy steel with a black oxide finish. Rated to Grade 14.9 (45H), this fastener delivers high clamping force in demanding industrial and mechanical assembly applications. The hex drive accepts a 5 mm hex key for installation and adjustment. Black oxide finish provides a basic level of corrosion resistance while reducing light reflection in finished assemblies. Machinists, millwrights, and maintenance technicians use this type of set screw to secure hubs, collars, gears, and pulleys to shafts where a flush or below-surface installation is required.

This set screw is suited for general industrial assembly, machine tool applications, and mechanical power transmission components. The flat point style distributes clamping load across a broad contact area on the shaft, making it appropriate for applications where shaft marring must be minimized or where the screw must bear against a flat-ground shaft. The metric thread profile and DIN 913 and ISO 4026 standards make it compatible with metric-dimensioned mechanical assemblies common in manufacturing, automation, and maintenance environments.

Key Features

• M10 x 1.50 mm thread with 10 mm overall length for precise fitment in metric assemblies
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Flat point geometry minimizes shaft damage and suits flat-ground shaft contact surfaces
• 5 mm hex drive for installation with a standard hex key or Allen wrench
• Black oxide finish provides mild corrosion resistance and a low-reflectance appearance
• Conforms to DIN 913 and ISO 4026 fastener standards for dimensional accuracy

Compatibility

Designed as a metric-standard set screw for use in any M10 x 1.50 mm threaded bore requiring a flat point, headless fastener per DIN 913 and ISO 4026 specifications.

Installation Notes

Installation is performed with a 5 mm hex key; ensure the key is fully seated before applying torque to avoid rounding the drive socket. De-energize and lock out any rotating equipment before installing or adjusting set screws on shafts. Threads should be free of debris and lubricated according to the equipment manufacturer's requirements. Minimum order quantity is 100 pieces; verify required quantity before ordering.
