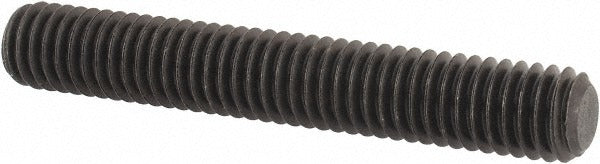

Value Collection 832088PS Set Screw M6x1 40mm Flat Point

Product Description

The VALUE COLLECTION 832088PS is an M6 x 1.00 x 40 mm flat point set screw manufactured from alloy steel at Grade 14.9 (45H), providing high tensile and torsional strength for demanding fastening applications. The black oxide finish offers mild corrosion resistance and reduces surface friction during installation. Driven by a 3 mm hex key, this fully threaded set screw seats flush or below the mating surface to lock components in place without a protruding head. It conforms to DIN 913 and ISO 4026 dimensional standards. This part is suited for maintenance shops, production facilities, and field technicians working with precision mechanical assemblies.

This set screw is used to secure collars, gears, pulleys, knobs, and similar components onto shafts or into threaded bores where a headless, flush fastener is required. The flat point style distributes clamping load across a small area without indenting soft shaft surfaces as aggressively as cup or cone point designs, making it appropriate for finished shafts and delicate assemblies. Typical installations include industrial machinery, conveyor systems, HVAC blower wheel hubs, and other rotating or stationary mechanical connections that require positive locking under vibration or load.

Key Features

• M6 x 1.00 thread with 40 mm overall length for deep thread engagement
• Grade 14.9 (45H) alloy steel construction delivers high clamp force and shear resistance
• Flat point design prevents marring of finished or soft shaft surfaces
• Black oxide finish provides mild corrosion resistance and reduces galling during torquing
• 3 mm hex key drive for precise, tool-controlled installation in tight spaces
• Conforms to DIN 913 and ISO 4026 standards for dimensional interchangeability

Compatibility

Designed as an OEM-style or replacement metric set screw for any threaded M6 x 1.00 bore or collar requiring a flat point, headless fastener per DIN 913 and ISO 4026 dimensional specifications.

Installation Notes

Installation is typically performed by a mechanical technician or millwright using a calibrated 3 mm hex key or Allen driver. Always de-energize and lock out rotating equipment before installing or removing set screws on shafts. Ensure the threaded bore is clean and free of debris before threading the fastener to avoid cross-threading. Do not use impact drivers on set screws, as this can strip the hex socket or damage the mating thread.
